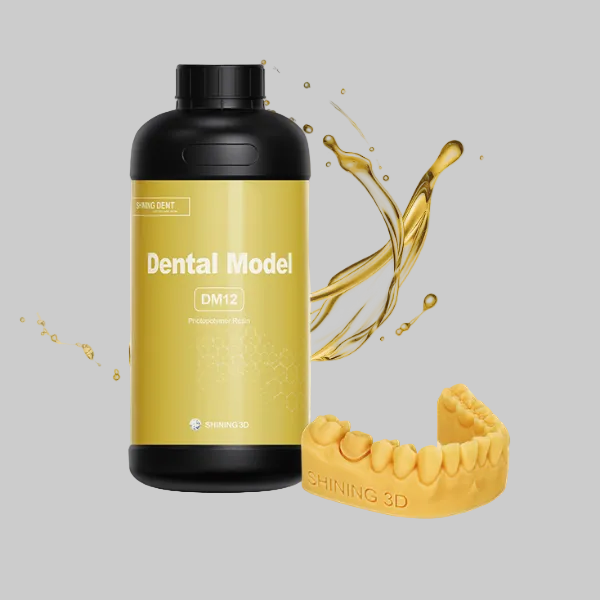

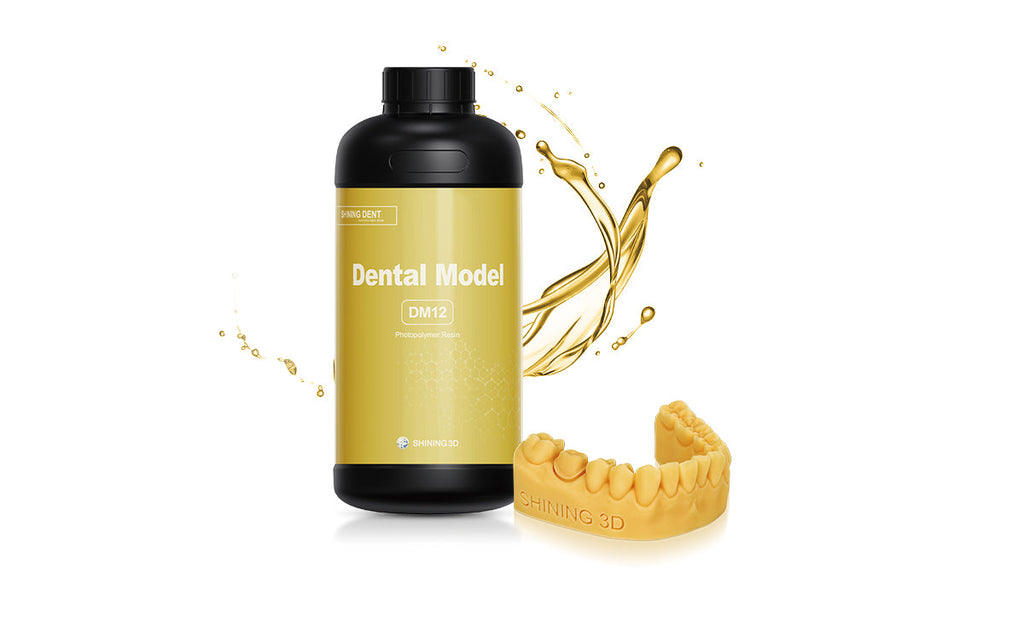

Shining3D DM12 Dental Model Resin

High-Precision 3D Printing Resin for Crown & Bridge Models

The Shining3D DM12 is a professional photopolymer resin designed from the ground up for dental laboratory workflows. It is the direct evolution of the DM11, re-engineered with a higher flexural modulus and lower elasticity to solve the one problem that matters most in crown and bridge work: model distortion. When a model flexes during die separation or crown seating, the fit suffers. The DM12 eliminates that variable — delivering stable, accurate, abrasion-resistant models that hold their geometry through every step of the finishing process.

⚠️ Before You Print — Read This First

• Not for intraoral use. The DM12 is a dental lab modeling resin only. It must never be placed inside a patient's mouth. For biocompatible or surgical applications, see our Dental Surgical Resin collection.
• 405 nm UV light required. The DM12 is formulated for 405 nm DLP and LCD printers. Verify your printer's light source wavelength before ordering.
• Print at room temperature: Work in an environment between 20–30°C (68–86°F). Cold resin thickens, causing drainage issues, adhesion failures, and inconsistent layer exposure.
• PPE is non-negotiable: Always wear nitrile gloves and safety glasses when handling uncured resin. Uncured photopolymer is a skin and eye irritant. Work in a ventilated area.
• Mix before every session: Pigment and photoinitiators settle over time. Shake and stir thoroughly before pouring into the vat to ensure uniform color, reactivity, and print quality.
• Post-curing is required: Parts must be washed and UV-cured after printing to achieve their final hardness and stability. An uncured model will remain soft, sticky, and dimensionally unreliable.

DM12 vs. DM11 — What Changed and Why It Matters for Your Workflow

If you have used the DM11 before, here is the practical difference: the DM11 had slightly more flexibility, which is useful for some applications but can introduce subtle warping when you are seating a crown or separating a die under pressure. Think of flexural modulus as the material's resistance to bending — the higher it is, the stiffer and more stable the model stays during mechanical stress. The DM12 raises that stiffness while retaining just enough controlled elasticity so it doesn't become brittle.

Key Features of the DM12

• Higher flexural modulus vs. DM11: The model resists bending during die separation, crown seating, and finishing — eliminating the micro-distortions that cause inaccurate fits.
• Abrasion-resistant cured surface: The DM12 cures to a hardness that withstands the mechanical friction of crown adjustment and trimming without developing surface wear that would compromise fit verification.
• Low viscosity formulation: Resin drains cleanly off printed surfaces and flows back into the vat faster — reducing cleanup time, minimizing IPA consumption, and extending vat film life.
• Yellow color for clinical accuracy: The yellow tone creates strong contrast against margin lines and adjacent contours, making it faster and easier to identify preparation boundaries, undercuts, and contact areas under lab lighting.
• High dimensional stability: Low shrinkage during and after curing ensures that the printed model matches your CAD geometry — critical for multi-unit cases and precise die articulation.
• Facilitates digital transition: The DM12 is designed to make the move from traditional stone models to digital printing as straightforward as possible — fast build speeds, predictable results, and a familiar yellow color that dental technicians recognize.

Dental Applications

• Separated working models for crown and bridge restorations
• Implant analog models (Geller model configuration)
• Removable dies for individual crown preparation
• Multi-unit implant frameworks and prosthetic reference models
• Diagnostic and study models
• Thermoforming base models for aligner and retainer fabrication

Technical Specifications

Recommended Print Settings

The DM12 is optimized for Shining3D's AccuFab printer series. If you are using a different 405 nm DLP or monochrome LCD printer, use these values as a starting point and fine-tune exposure times with a calibration print before running production models.

⚠️ For printer-specific validated profiles for the AccuFab-L4K, AccuFab-L4D, or AccuFab-CEL, refer directly to the Shining3D documentation portal.

Post-Processing Instructions

1. Remove from build plate using a metal spatula. Keep gloves on — uncured resin remains on the surface immediately after printing.
2. Wash in 95% ethanol or IPA using an ultrasonic bath: 30 seconds + 60 seconds in two separate baths. For manual washing, agitate gently with a soft brush for 5–10 minutes. Avoid prolonged immersion, which can soften fine features.
3. Air dry for at least 5 minutes. Use pressurized air to clear IPA from die sockets and deep margin areas before curing.
4. Post-cure under UV: FabCure 1 — 10 minutes / FabCure 2 — 7 minutes. For third-party curing stations, 5–15 minutes at 405 nm depending on lamp power. Do not over-cure — excessive UV exposure causes discoloration and can increase brittleness.
5. Remove supports and finish after full post-cure for cleaner break-off points and easier trimming.

Who Is This Resin For?

The Shining3D DM12 is the right choice if:

• You work in a dental laboratory printing working models, removable dies, or implant analogs for crown and bridge cases where fit precision is non-negotiable.
• You are currently using the DM11 and experiencing subtle distortion during die separation or crown seating — the DM12's higher flexural modulus directly addresses that.
• You own a 405 nm DLP or monochrome LCD printer — including the AccuFab series, Elegoo, Anycubic Photon Mono, Phrozen Sonic, or similar machines.
• You need a resin that supports fast, high-volume production with low-viscosity cleanup and predictable, batch-consistent results.

This resin is NOT the right choice if you need an intraoral-grade or biocompatible material for surgical guides, custom trays, or direct patient contact. For those cases, see our Dental Surgical Resin collection.
