BTT Octopus MAX EZ Controller Board / 3D Printer Control System

Advanced 3D printer builds and Klipper users face challenges with control board reliability and expandability, where poor protection or limited driver support can cause print failures or hardware damage. Without a robust control system, issues like short circuits or firmware update difficulties can interrupt complex prints and DIY upgrades.

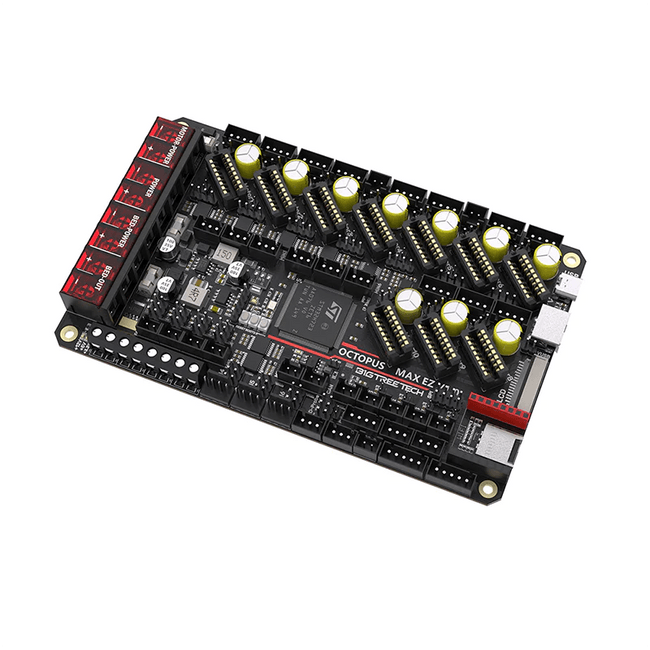

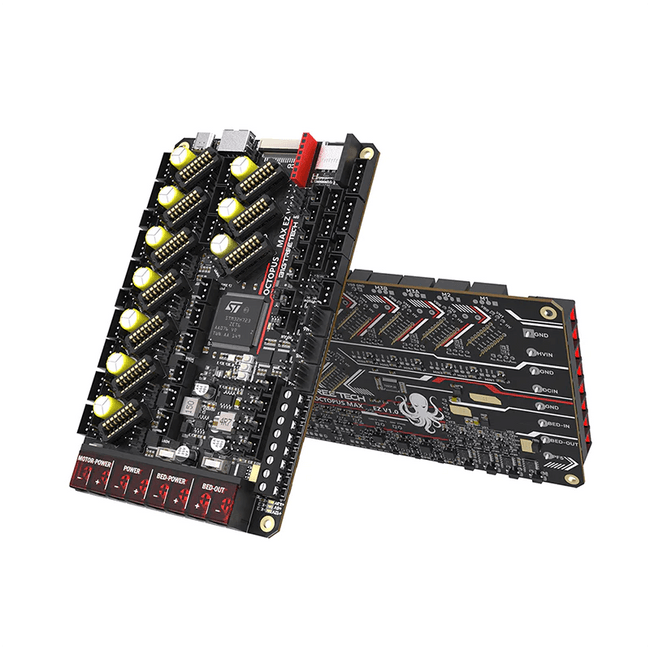

The BIGTREETECH Octopus MAX EZ Controller Board is a 32-bit 550 MHz ARM Cortex-M7 STM32H723ZET6 motherboard designed as an enhanced successor to the Octopus Pro. It features self-developed stepper motor sockets for safer, pinless driver installation and supports up to 10 EZ driver sockets, ideal for CoreXY and multi-extruder setups common in Voron 2.4, Trident, and other high-end DIY printers. The board includes onboard eFuse protection against short circuits and over-current, selectable fan voltages (24V, 12V, 5V) eliminating external step-down converters, and firmware upgrade options via SD card or Klipper's DFU mode. Additional features like power loss recovery, filament runout sensor support, CAN bus, and SPI interface for input shaping make it a versatile 3D printer control system for advanced FDM builds.

Why Upgrade?

• Voron 2.4 and Trident builders benefit from enhanced stepper driver safety with pinless EZ sockets reducing connection errors
• Klipper users gain easy firmware updates via onboard BOOT button and SD card support
• Multi-extruder and CoreXY setups are supported with 10 driver sockets and CAN bus connectivity
• Protection against short circuits and over-current prevents costly motherboard damage during complex prints
• Selectable fan voltages eliminate the need for external step-down converters, simplifying wiring and reducing failure points

Best For:

• Voron 2.4 and Trident builders upgrading to a more robust control board
• Switchwire and CoreXY DIY enthusiasts requiring multiple stepper drivers and advanced sensor support
• Klipper ecosystem users needing easy firmware flashing and input shaping capabilities
• Advanced FDM printers with multi-extruder or complex motion systems
• Users seeking enhanced electrical protection and safer stepper driver installation

Pair With the Right Filament

This control board supports advanced FDM printers capable of handling a wide range of filaments, from standard PLA to high-temp and flexible materials.

• PLA Filament — reliable for everyday printing with stable temperature control
• PETG Filament — ideal for durable prints requiring consistent extrusion
• TPU Flexible Filament — supported by multi-extruder setups and precise stepper control
