xTool S1 Enclosed Diode Laser Cutter

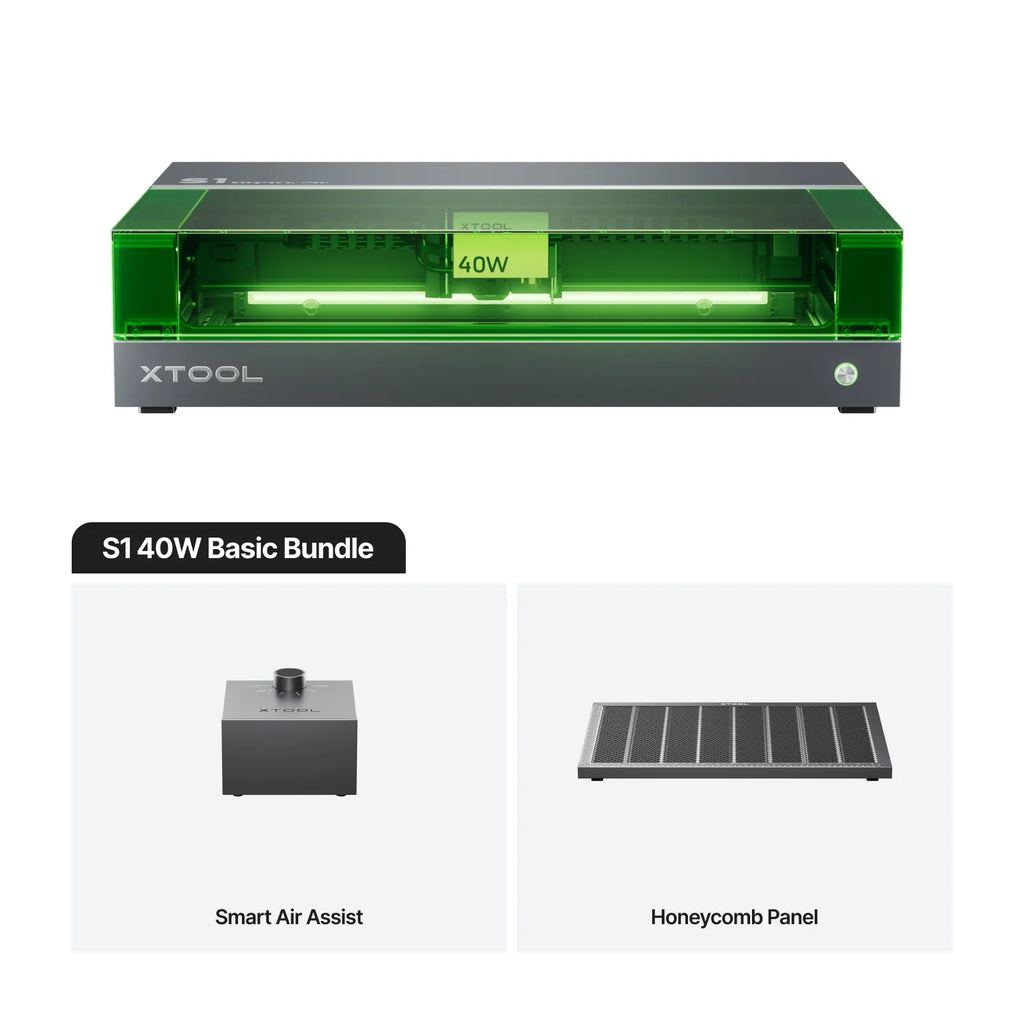

40W / 40W Basic Bundle

$1,699.00

$1,699.00 $2,199.00

1/16

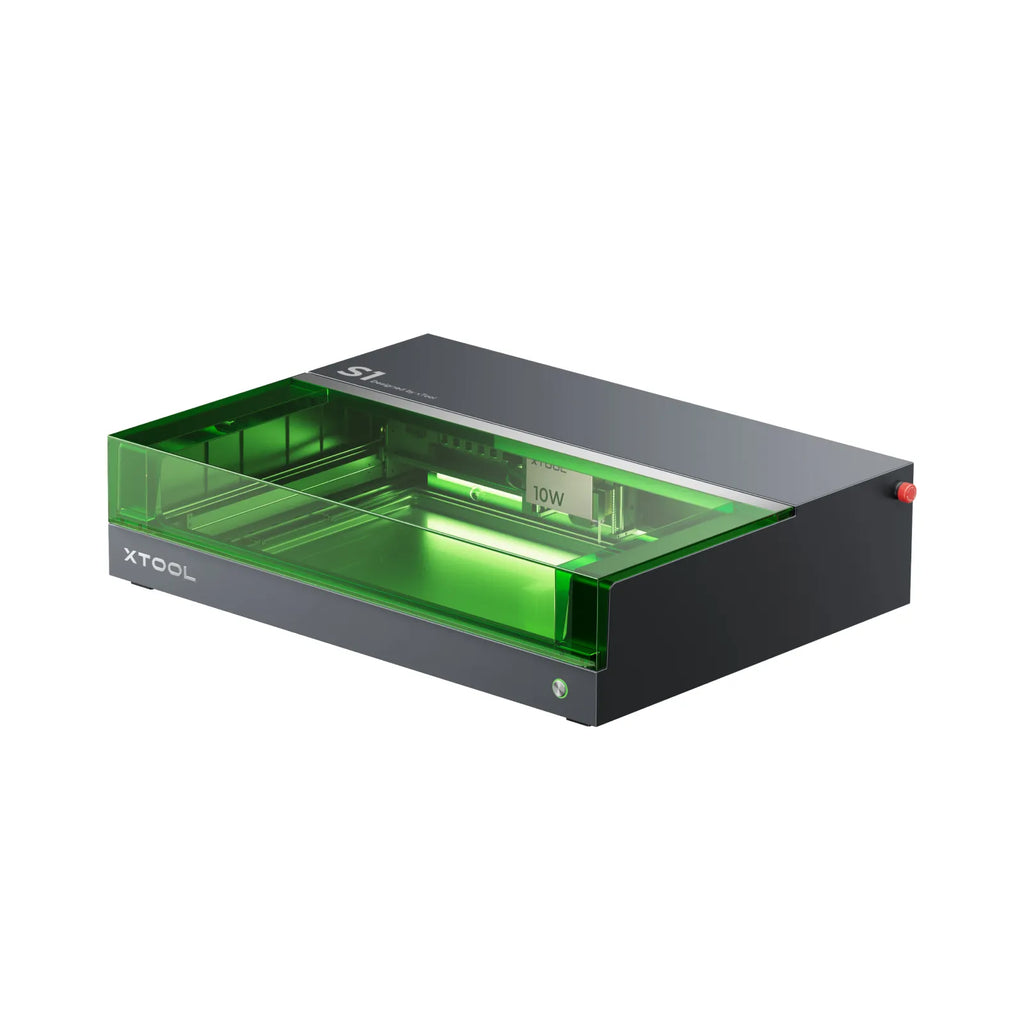

xTool S1 Enclosed Diode Laser Cutter

$1,699.00

$1,699.00 $2,199.00

Machine Power

Package

Enclosed Diode Laser Cutter

xTool S1 —
CO2 Power.
Diode Price. Full Enclosure.

The world's first 40W enclosed diode laser cutter. Cut up to 18mm wood, engrave metals, and run batch production — all inside a fully enclosed Class 1 safe workspace. No goggles required.

40W laser power

600 mm/s speed

23.93" bed width

Class 1 safety rating

Switchable Laser Modules

One Machine. Every Material.

The S1 accepts interchangeable laser modules — swap between them in seconds to match any material or project type. No separate machines, no compromises.

40W Diode

Blue Laser · 455nm

Cut: Wood (18mm), dark acrylic (15mm), leather, MDF, felt, paper, fabric.

Engrave: Wood, bamboo, ceramic, marble, slate, dark glass, stainless steel, painted & plated metals.

2W IR

Infrared Laser · 1064nm

Engrave: All bare metals (gold, silver, brass, iron, aluminum, stainless steel), plastic, black acrylic.

Ultra-HD results with a laser spot of 0.03×0.03mm.

Pin-point™ Positioning

10× More Accurate Than Camera Systems.

The xTool S1 uses advanced encoders and algorithms to establish a precise absolute coordinate layout, displaying the laser module's position in real time inside XCS software. The result: pattern placement free from camera distortion, with positioning accuracy that surpasses any single-camera system — every time, across every batch.

Pin-point™ Positioning

Real-time absolute coordinate layout. 10× more accurate than single-camera systems.

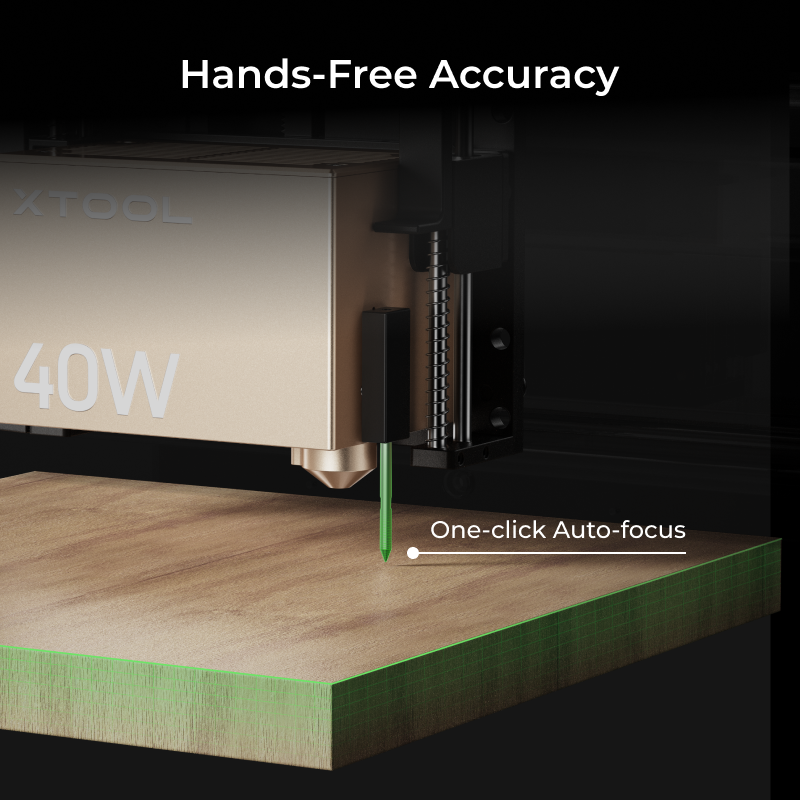

Intelligent Autofocus

Multi-point focus ranging with automatic 3D model generation. One click in XCS.

3D Curve™ Engraving

Dynamic Z-axis focus adjustment delivers perfect results on curved and uneven surfaces.

Batch Positioning

Multi-shape batch marking with no jigs needed. Position objects of different shapes simultaneously.

Largest Bed in Its Class

More Space. More Output. More Revenue.

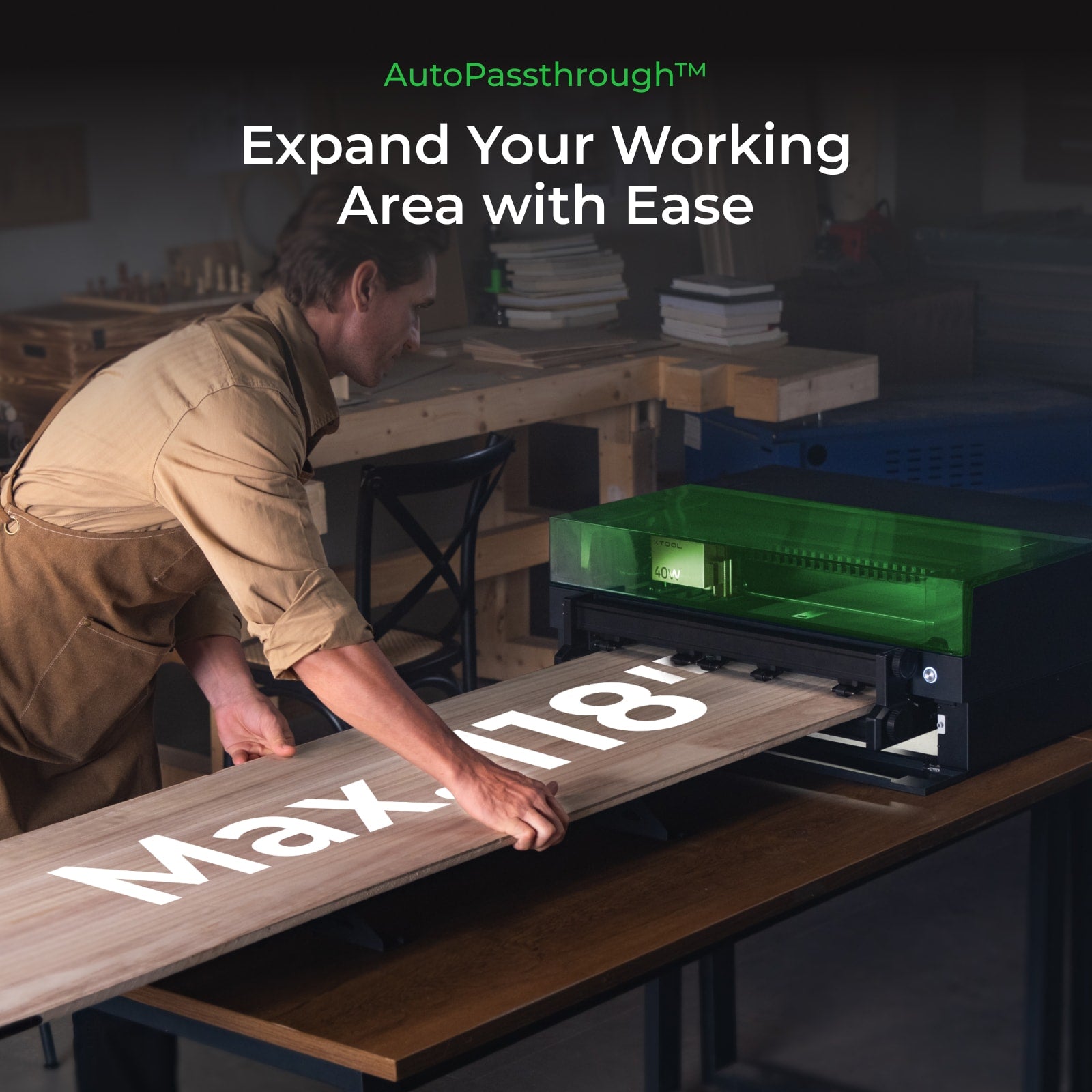

With a bed size of 23.93" × 15.16" (608 × 385mm) and a working area of 19.6" × 12.5" (498 × 319mm) — larger than A3 format — the S1 handles bigger projects and more pieces per run. Add the optional AutoPassthrough™ Conveyor Feeder and the working length extends to an unlimited 3,000mm (118 inches).

23.93" × 15.16" Bed Largest working area in its category. Handles A3+ format projects with room to spare.

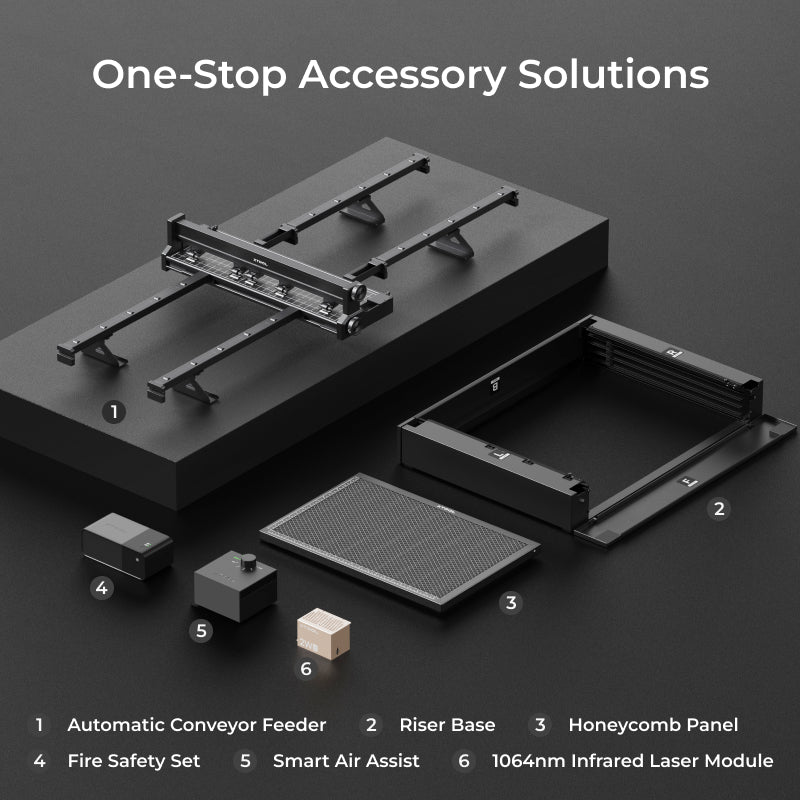

AutoPassthrough™ Technology Extend to 3,000mm (118") with the optional Conveyor Feeder. Unlimited length, precise results.

600 mm/s Speed Upgraded guide rail structure + 40W power = CO2-comparable throughput at diode price.

Up to 133.5mm Object Height Add the optional Riser Base to engrave taller objects — tumblers, boxes, thick slabs.

Class 1 Safety

The Safest Diode Laser You Can Buy.

Class 1 certified. No goggles required. No laser light escapes when the lid is closed. The S1's fully enclosed design integrates advanced dual-light filtering — blocking both blue diode and infrared wavelengths — so you can operate safely in any shared workspace, studio, or classroom.

5-Direction Flame Detection

Enhanced sensitivity sensors monitor from all angles. Instant automatic shutdown on detection.

Lid-Open Safety Stop

Opening the cover instantly halts operation. No accidental laser exposure.

Emergency Stop

One-touch halt. Stops processing instantly in any situation.

Laser Key Lock

Physical key prevents unauthorized use. Essential for shared studios and classrooms.

Technical Specifications

Everything You Need to Know.

Laser options	20W or 40W Diode (455nm) + optional 2W IR (1064nm)
Max cutting thickness (40W)	18mm cherry wood · 15mm dark acrylic · 0.1mm stainless steel
Max cutting thickness (20W)	10mm cherry wood · 8mm dark acrylic · 0.04mm stainless steel
Engraving speed	Up to 600 mm/s
Bed size	23.93" × 15.16" (608 × 385mm)
Working area	19.6" × 12.5" (498 × 319mm) — expandable to 3,000mm with conveyor
Max object height	42mm standard · 125mm with Class 1 Riser · 133.5mm with Class 4 Riser
Positioning system	Pin-point™ — 10× more accurate than single-camera systems
Connectivity	Wi-Fi · USB
Compatible software	xTool Creative Space (XCS) · LightBurn
Safety	Class 1 · 5-direction flame detection · Emergency stop · Lid-open safety stop · Laser key lock · 100 CFM exhaust fan
Warranty	12 months

Who Is the xTool S1 For?

Built for Makers Who Mean Business.

Small business owners High-volume cutting and engraving on wood, acrylic, leather — with batch efficiency that scales.

Woodworkers & crafters Cut through 18mm wood in one pass. Engrave fine detail on any surface without changing machines.

Educators & makerspaces Class 1 certified, key lock, and full enclosure make it the safest option for shared environments.

Etsy & Shopify sellers Fast turnaround, precise positioning, and batch processing — built for high-order volume.

Metal engravers Add the 2W IR module and engrave all bare metals with ultra-HD results — no coating needed.

Upgraders from open-frame lasers Same diode technology, now fully enclosed, Class 1 safe, and twice as capable.

The Enclosed Laser You've Been Waiting For.

40W power. Class 1 safety. Larger bed. Ready to cut from day one.
