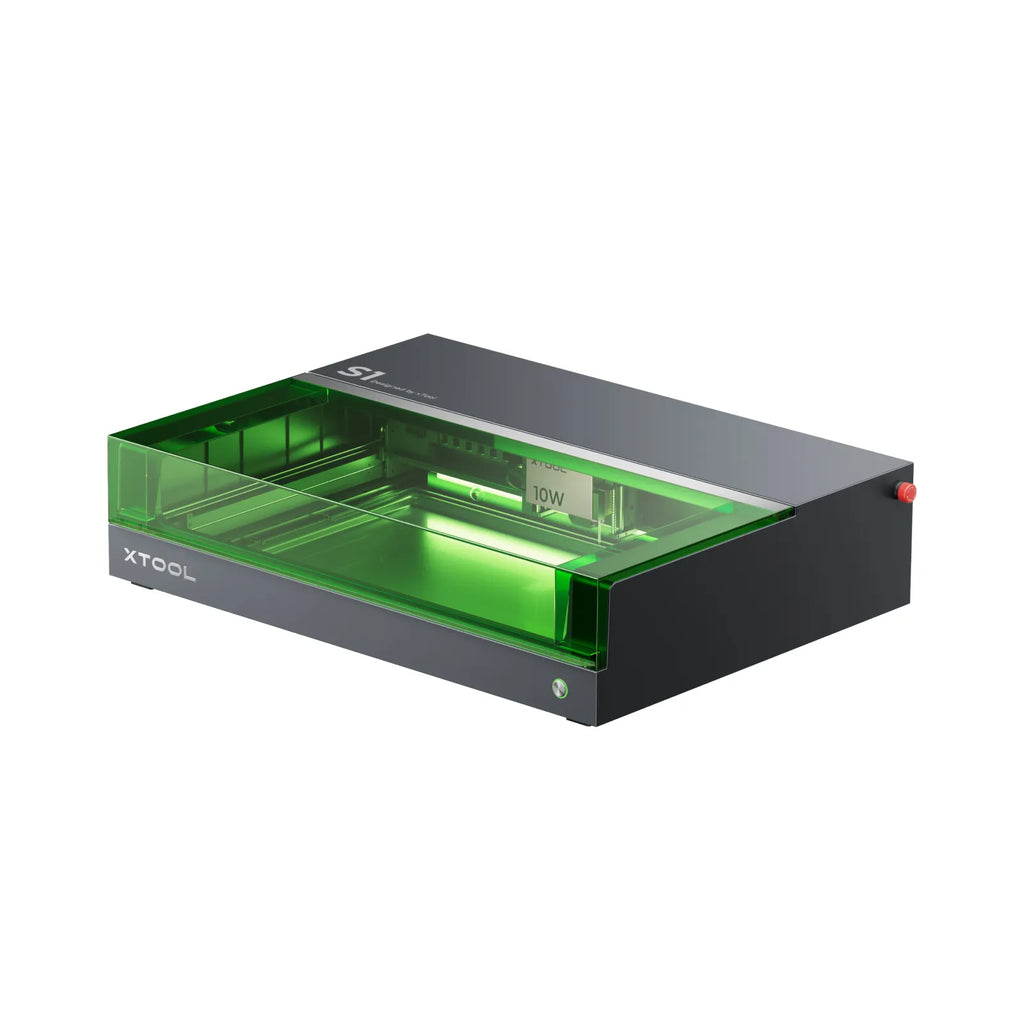

xTool S1 + 1064nm IR Laser Kit: Enclosed Diode Laser Engraver & Cutter

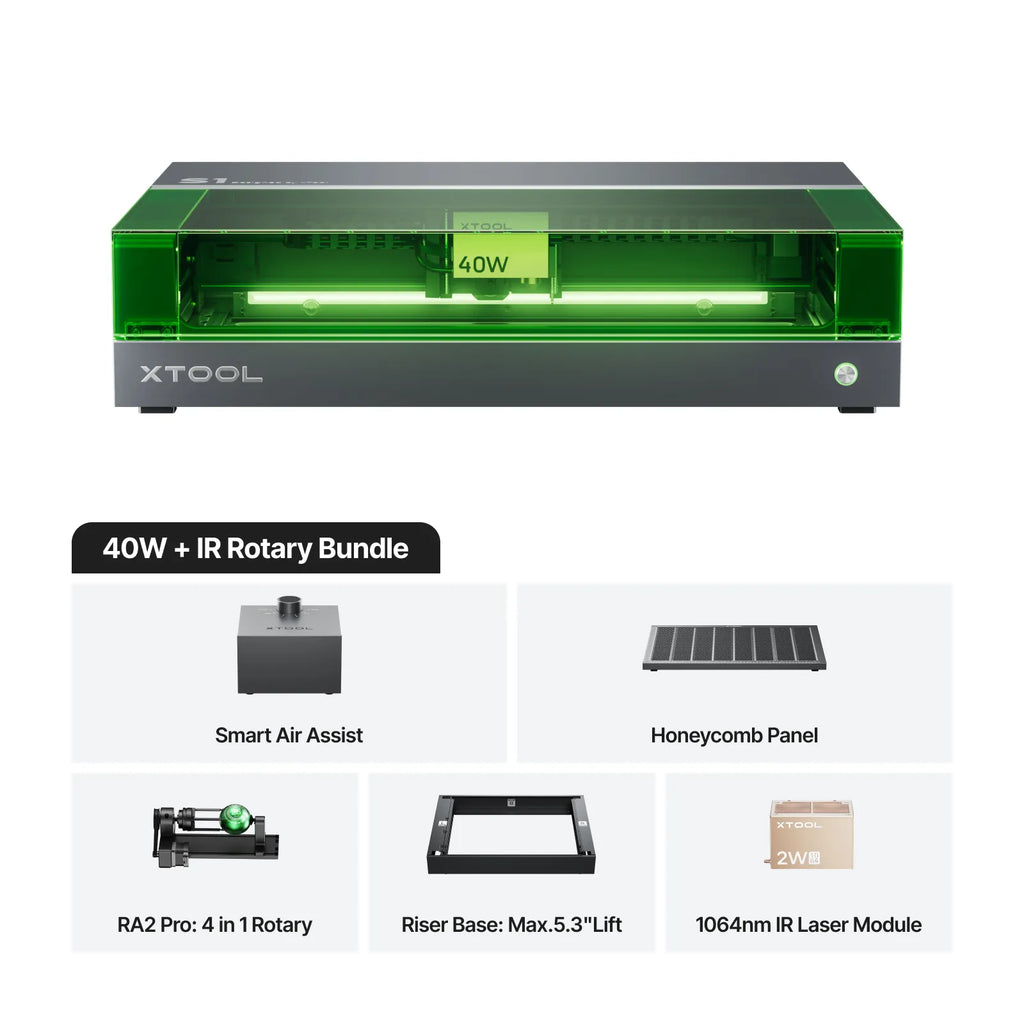

40W + IR Rotary Bundle

$2,349.00

$2,349.00 $3,383.00

1/16

xTool S1 + 1064nm IR Laser Kit: Enclosed Diode Laser Engraver & Cutter

$2,349.00

$2,349.00 $3,383.00

Enclosed Diode Laser + IR Metal Kit

xTool S1 + IR Kit —
Cut Wood. Engrave Metal.
Every Material. One Machine.

The xTool S1 already cuts 18mm wood and engraves hundreds of materials. Add the 2W 1064nm IR module and you unlock direct engraving on every bare metal — gold, silver, platinum, copper, titanium — with a 0.03mm laser spot so fine it rivals professional jewelry tools.

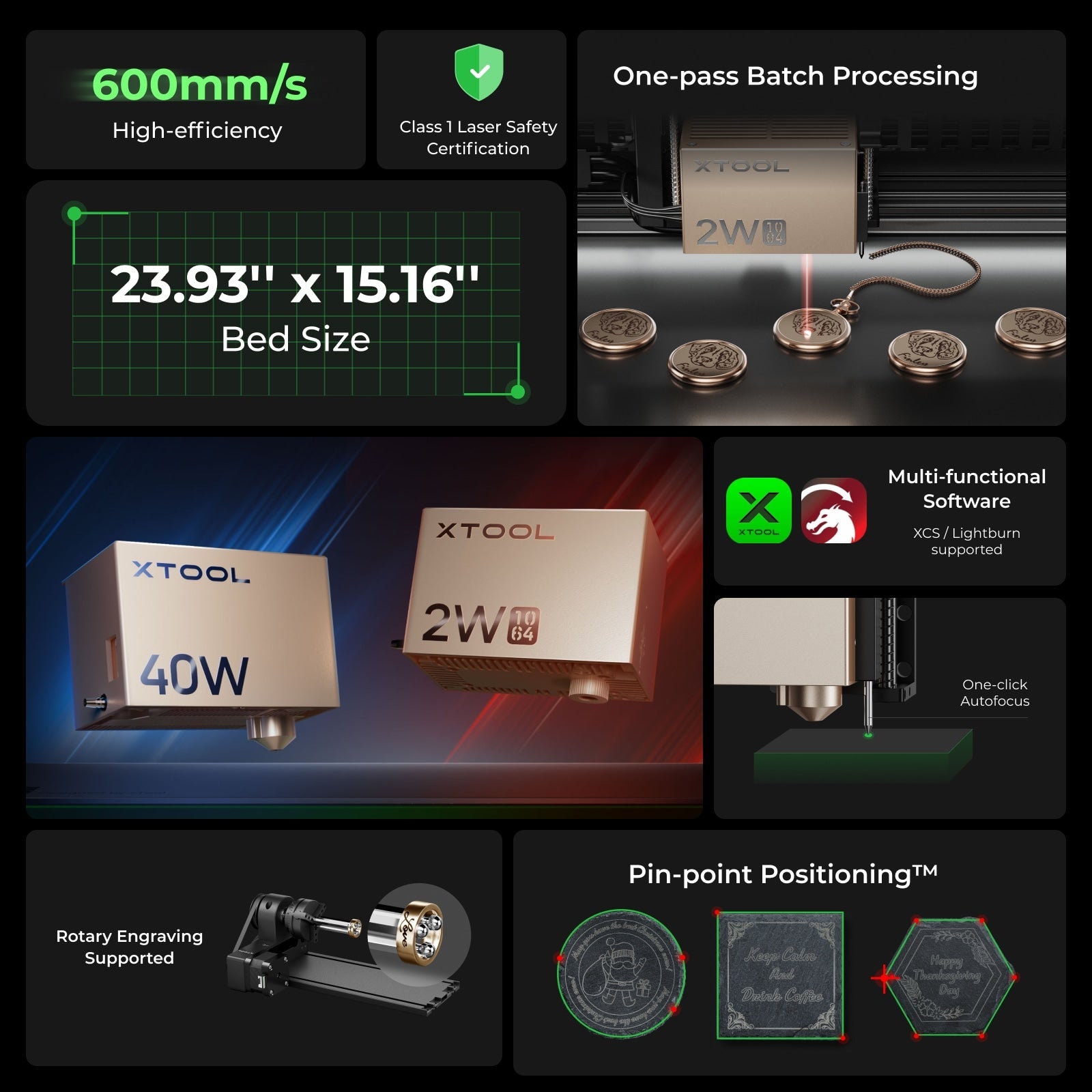

40W+2W dual laser power

0.03mm IR laser spot

600 mm/s speed

Class 1 safety rating

Two Laser Modules. Every Material.

What This Kit Unlocks vs. the S1 Alone.

The S1's 40W diode laser is already one of the most capable enclosed cutters on the market. The 1064nm IR module takes it further — engraving bare metals that a diode laser simply cannot touch, with a spot size 2.6× smaller and virtually no burn marks on leather or acrylic.

40W

Blue Diode · 455nm

Cut: Wood (18mm), dark acrylic (15mm), leather, MDF, felt, paper, fabric.

Engrave: Wood, bamboo, ceramic, marble, slate, dark glass, coated & plated metals, stainless steel.

2W IR

Infrared · 1064nm

Engrave bare metals: Gold · Silver · Platinum · Copper · Aluminum · Zinc · Titanium · Iron · Stainless steel · Metal alloys.

Also: opaque plastics, dark acrylic, leather (with minimal burn marks).

1064nm IR Laser — Why It Matters

Ultra-HD Engraving on Any Metal. No Coating Required.

A standard 455nm diode laser can't engrave bare gold, silver, or copper — it reflects the beam. The 1064nm infrared wavelength is absorbed directly by all metals, delivering permanent, high-contrast marks without any spray coating or prep work. The 0.03×0.03mm spot size — among the finest available in any desktop machine — produces engraving detail that rivals professional jewelry tools.

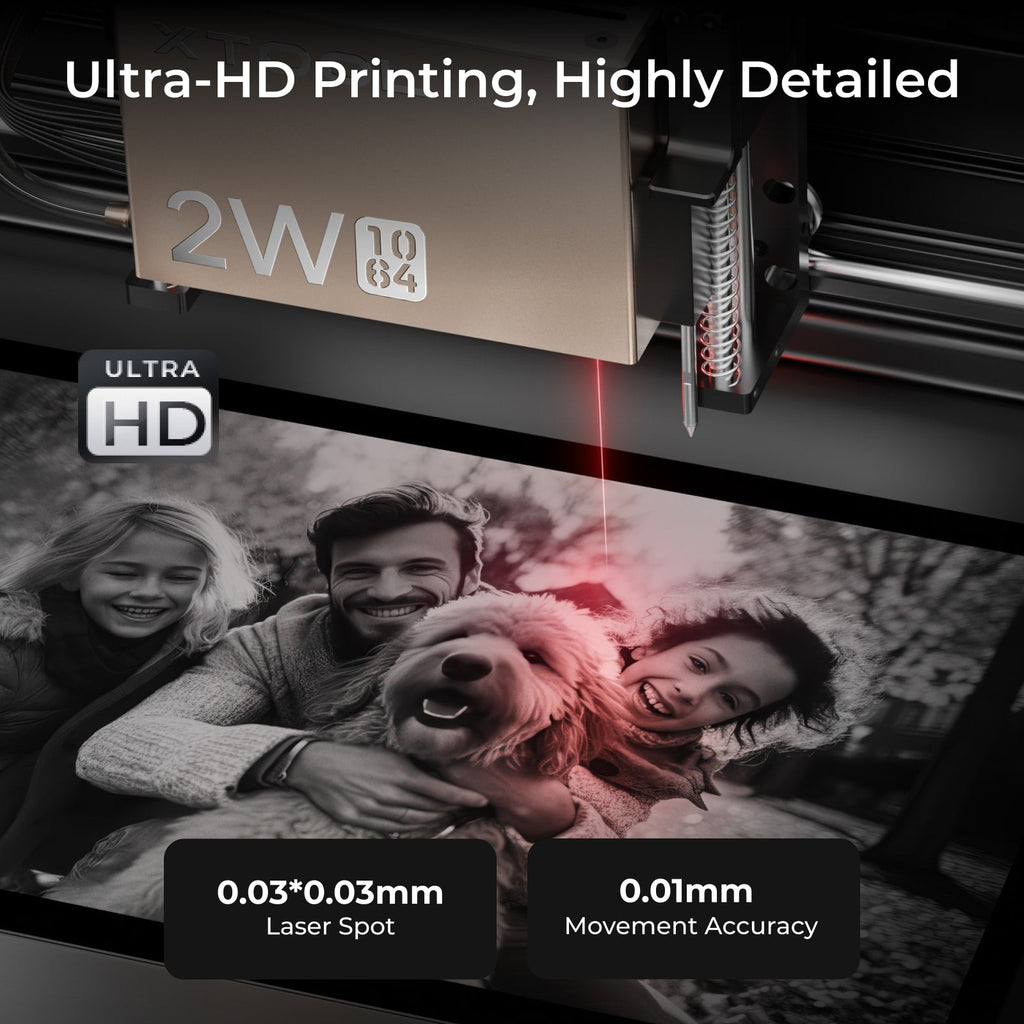

0.03×0.03mm Spot

2.6× finer than the diode module. Captures hairline details on rings, pendants, and business cards.

No Coating Needed

Direct engraving on gold, silver, platinum, copper, and titanium — no spray, no prep, no extra cost.

0.01mm Motion Precision

Every stroke is exactly where it should be. Critical for jewelry, logos, and serial numbers.

Cleaner on Plastic & Leather

Engraves acrylic and leather with less scorching and smoother edges than the 455nm module.

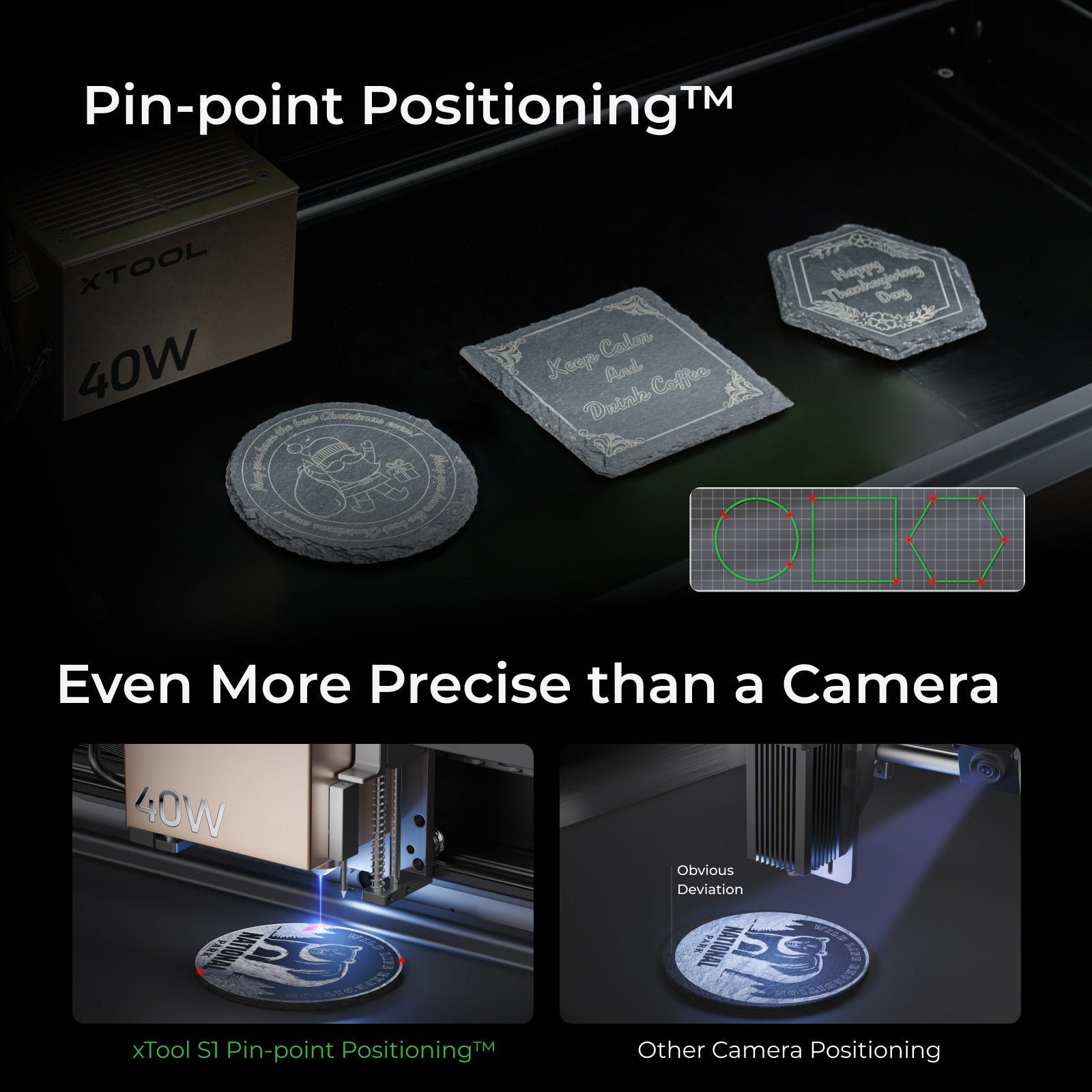

Pin-point™ Positioning + Large Bed

Precision That Scales. Space That Delivers.

The S1's Pin-point™ positioning system uses advanced encoders and real-time coordinate tracking — 10× more accurate than single-camera systems. Pair that with a 23.93" × 15.16" bed (largest in its class) and you get precision on small jewelry pieces and throughput on large batch runs — from the same machine.

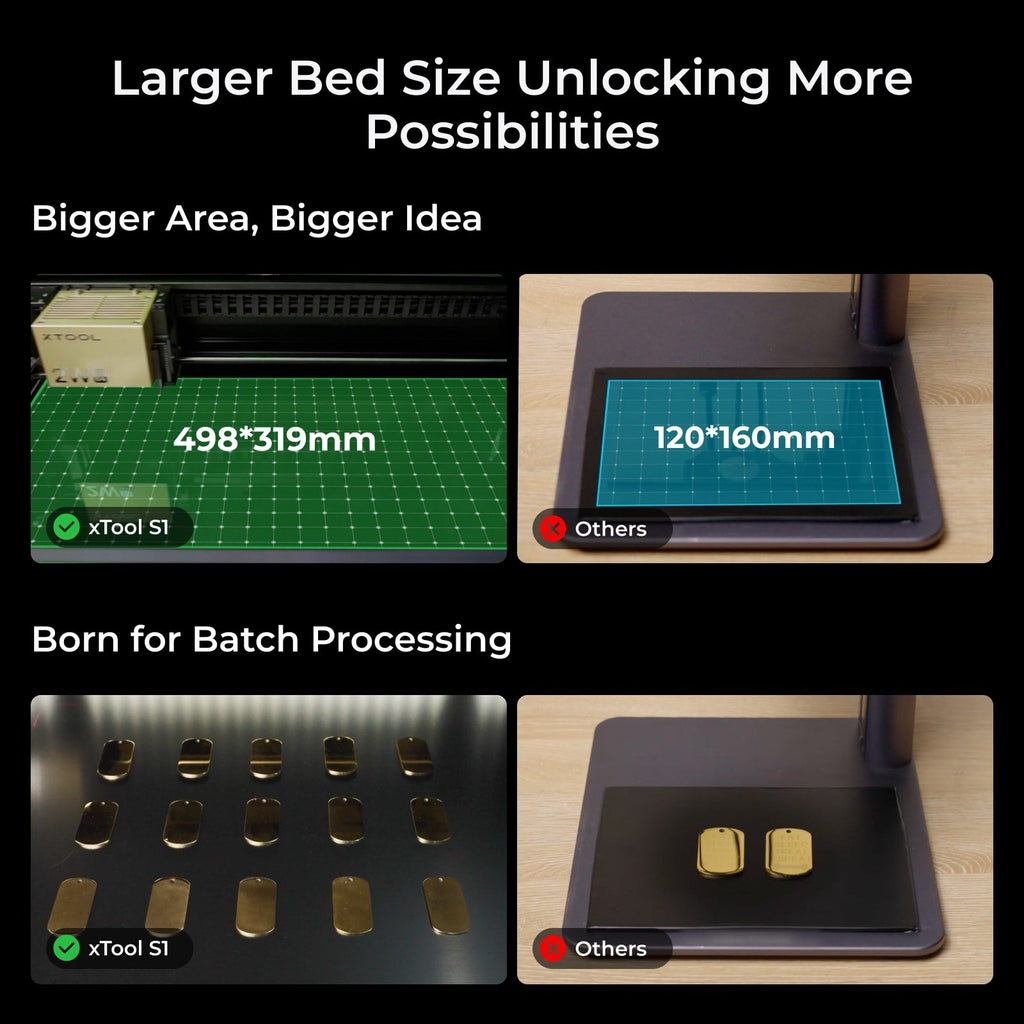

23.93" × 15.16" Bed Largest working area in its class. Fit up to 119 dog tags, dozens of rings, or full A3+ panels in one run.

Pin-point™ Positioning 10× more accurate than camera systems. Real-time position display in XCS. No distortion, no misalignment.

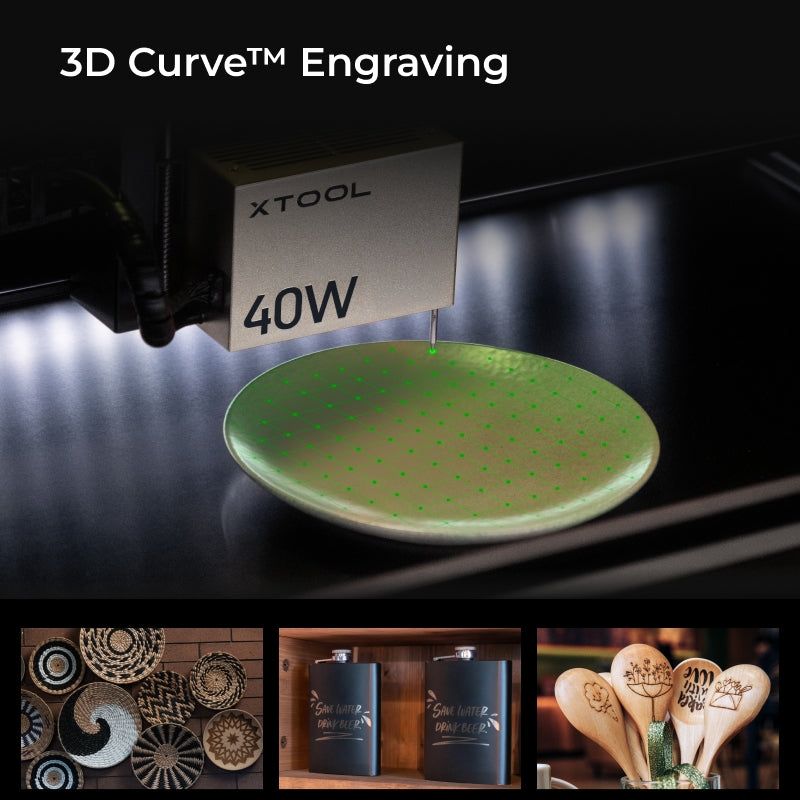

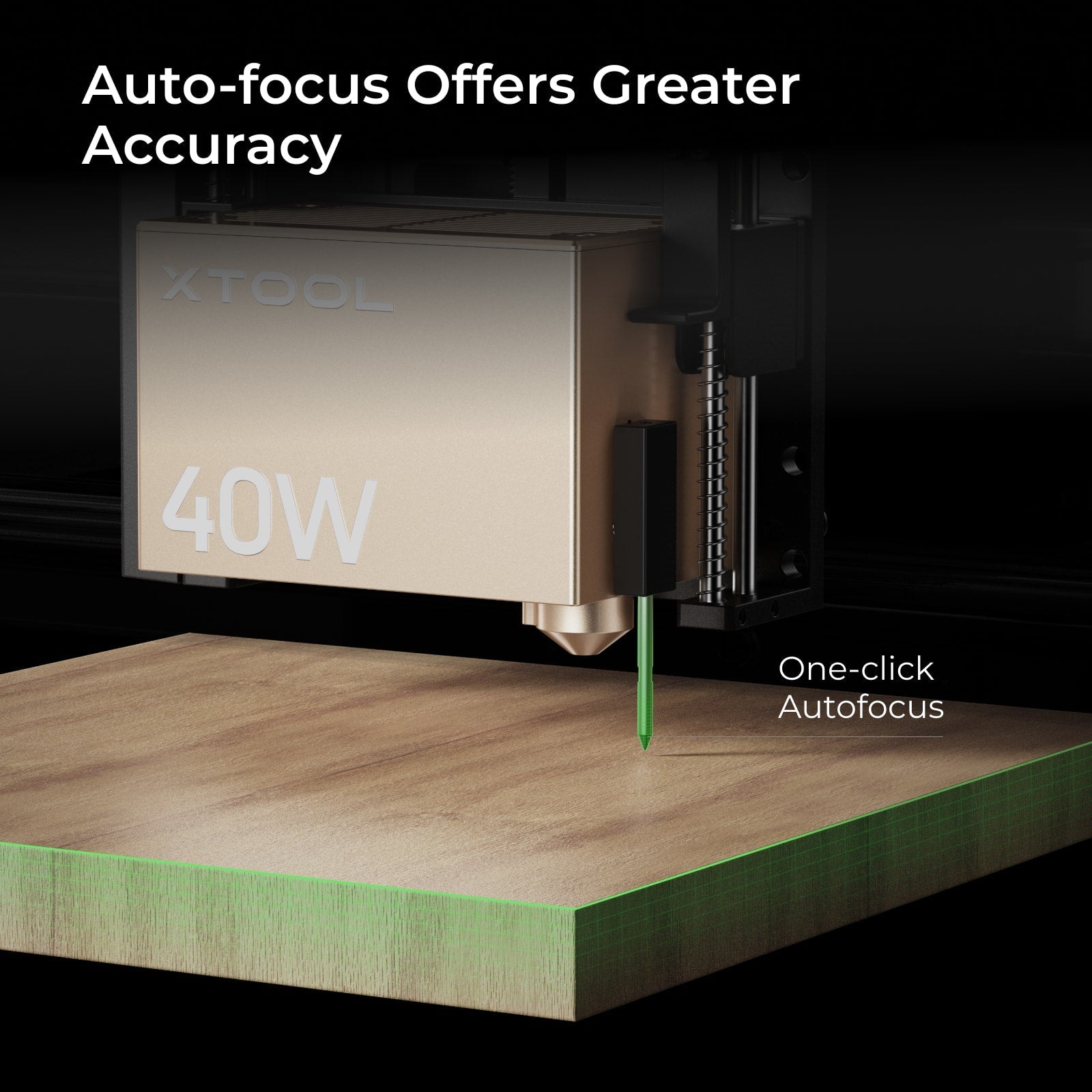

3D Curve™ Engraving Dynamic Z-axis autofocus for curved and uneven surfaces — spoons, domed pieces, irregular objects.

AutoPassthrough™ to 118" Add the optional Conveyor Feeder and engrave or cut materials up to 3,000mm long without repositioning.

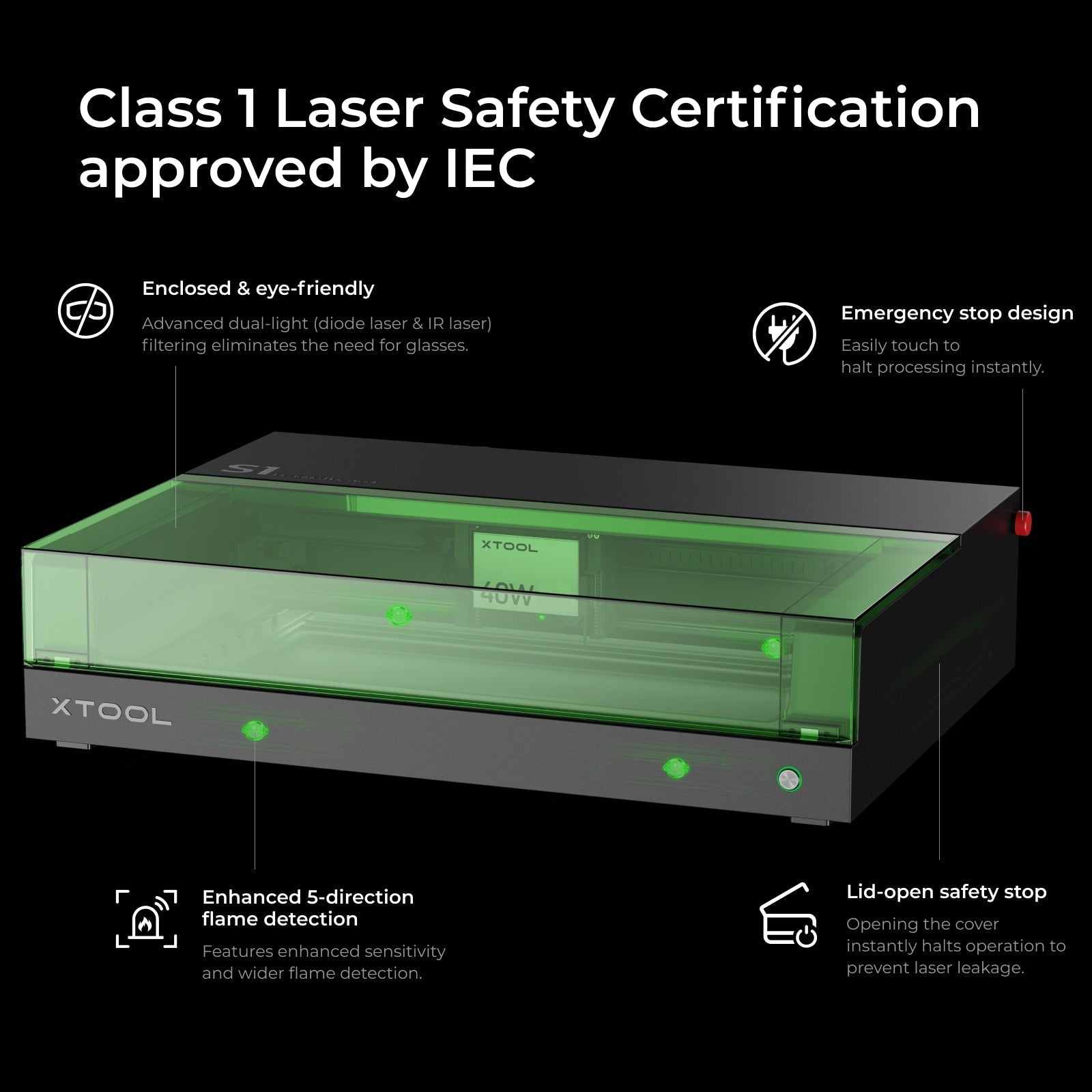

Class 1 Safety

Safe for Storefronts. Safe for Classrooms.

Class 1 certified — no goggles required. The advanced dual-light filtering lid blocks both 455nm blue and 1064nm infrared wavelengths simultaneously. No laser light escapes when the lid is closed, making it the only enclosed diode + IR system safe for open commercial environments.

Dual-Light Filtering Lid

Blocks both blue and IR wavelengths. No goggles needed for either module.

5-Direction Flame Detection

Enhanced sensitivity monitors from all angles. Instant automatic shutdown on detection.

Lid-Open Safety Stop

Opening the cover halts operation instantly. No accidental exposure during module swaps.

Laser Key Lock

Physical key prevents unauthorized use — essential for shared studios, classrooms, and retail settings.

Technical Specifications

Everything You Need to Know.

Laser modules	40W Diode (455nm) + 2W IR (1064nm)
IR laser spot size	0.03×0.03mm
Diode laser spot size	0.08×0.10mm

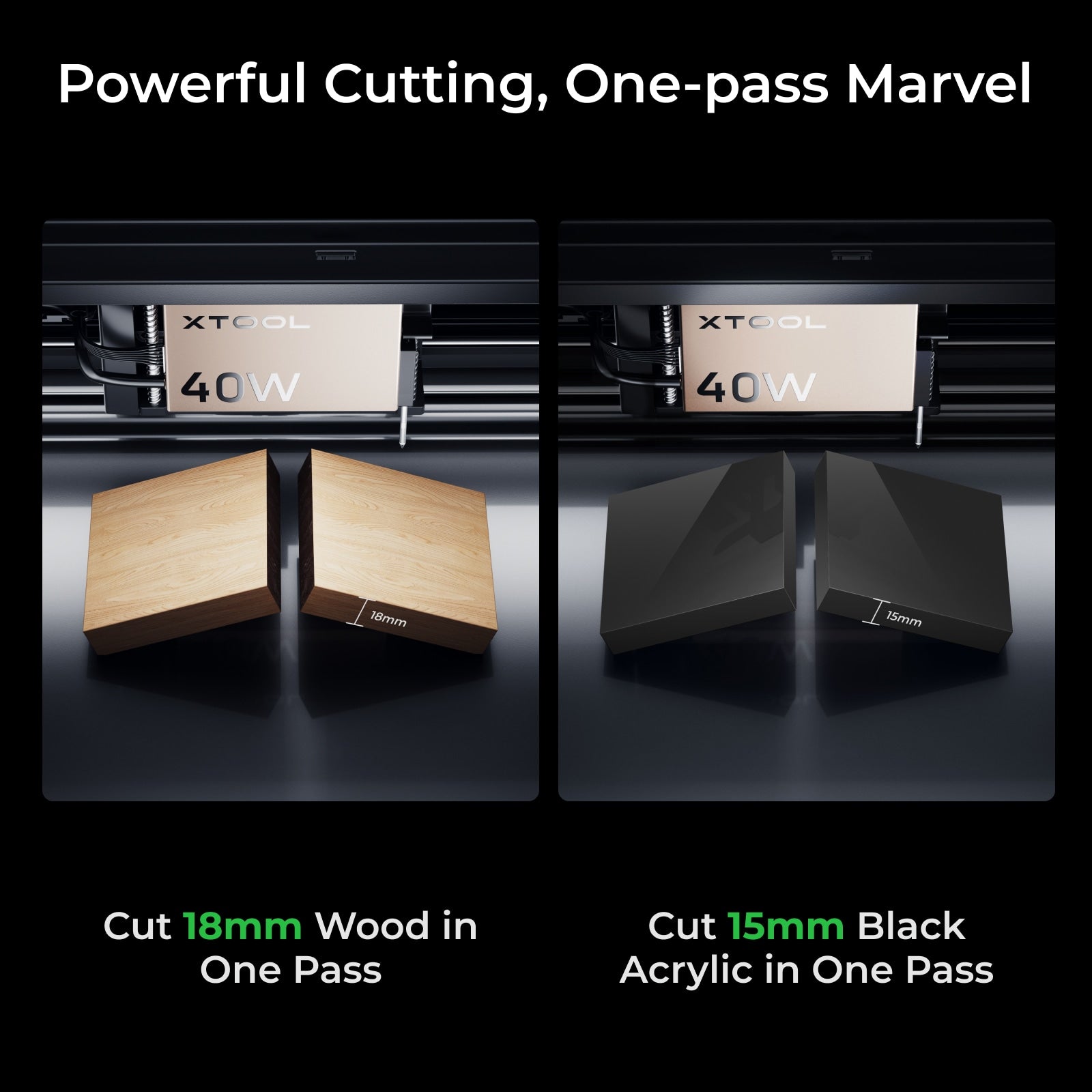

Max cutting thickness (40W)	18mm cherry wood · 15mm dark acrylic
IR metal cutting	Up to 0.05mm aluminum, copper, stainless steel
Max engraving speed	600 mm/s
Motion precision	0.01mm
Bed size	23.93" × 15.16" (608 × 385mm)
Working area	19.6" × 12.5" (498 × 319mm) — expandable to 118" with conveyor
Max object height	42mm standard · 125mm with Class 1 Riser · 133.5mm with Class 4 Riser
Positioning system	Pin-point™ — 10× more accurate than single-camera systems
Connectivity	Wi-Fi · USB

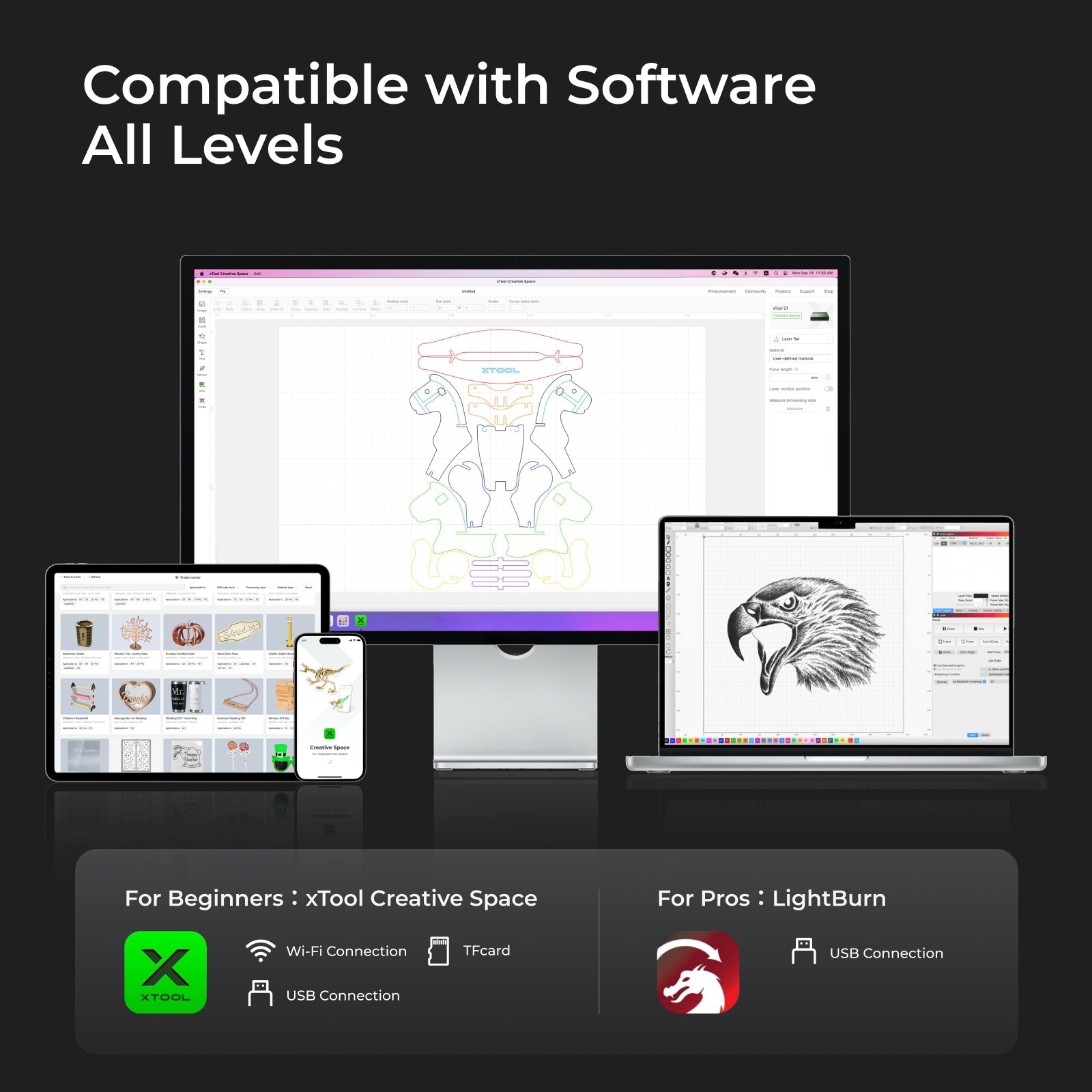

Compatible software	xTool Creative Space (XCS) · LightBurn
Safety	Class 1 · Dual-light filtering lid · 5-direction flame detection · Emergency stop · Lid-open stop · Laser key lock
Warranty	12 months

Who Is This Kit For?

The S1 for Makers Who Work in Metal.

Jewelry makers Engrave gold, silver, platinum, and titanium directly — no coating, no compromise on detail.

Personalized gift businesses Cut wood and acrylic with the diode, then swap to IR for metal engraving — all on the same order.

In-store customization services Class 1 safe, dual-module capability — engrave any material a customer brings, on the spot.

Etsy & Shopify sellers Expand your product catalog to include metal items — dog tags, keychains, rings — without a new machine.

Makers upgrading their S1 Already own the S1? The IR module is available separately — add metal capability without replacing your machine.

Photo & branding engravers 0.03mm spot + 0.01mm precision = photo-realistic results on metal business cards, plaques, and awards.

Cut Wood. Engrave Metal. One Machine.

40W diode + 2W IR. Class 1 safe. Largest bed in its class. Ready from day one.
