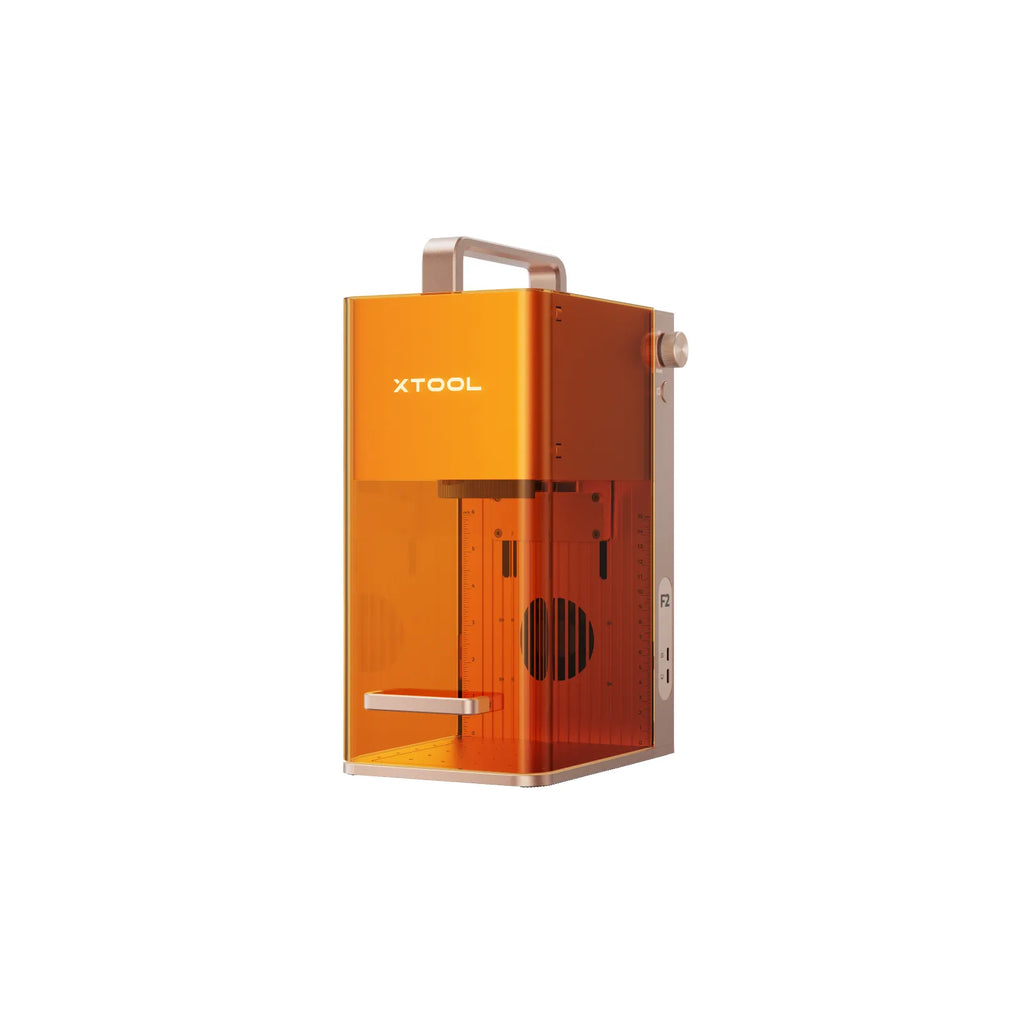

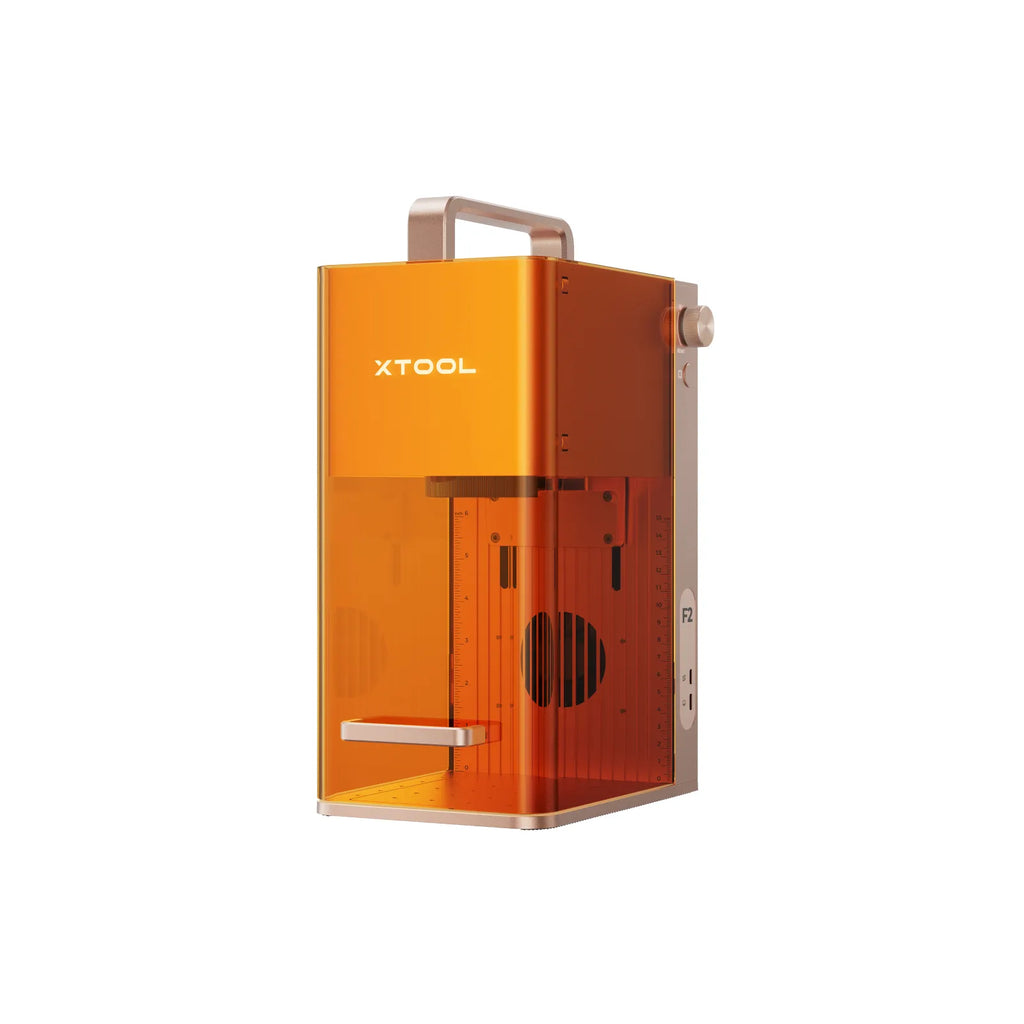

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver

F2 Standalone

$1,499.00

$1,499.00 $1,499.00

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver

$1,499.00

$1,499.00 $1,499.00

Portable Dual Laser — F1 Upgraded

xTool F2 —
50MP Camera.
More Power. Smarter Everywhere.

The F1's successor — with 50% more diode power, 2.5× stronger IR, a built-in 50MP camera, and 6,000mm/s speed. Color engraving, 3D relief, and deep metal marking now come standard in the same portable footprint. The upgrade you didn't know you needed.

6,000 mm/s speed

50MP built-in camera

15W+5W dual laser power

300+ compatible materials

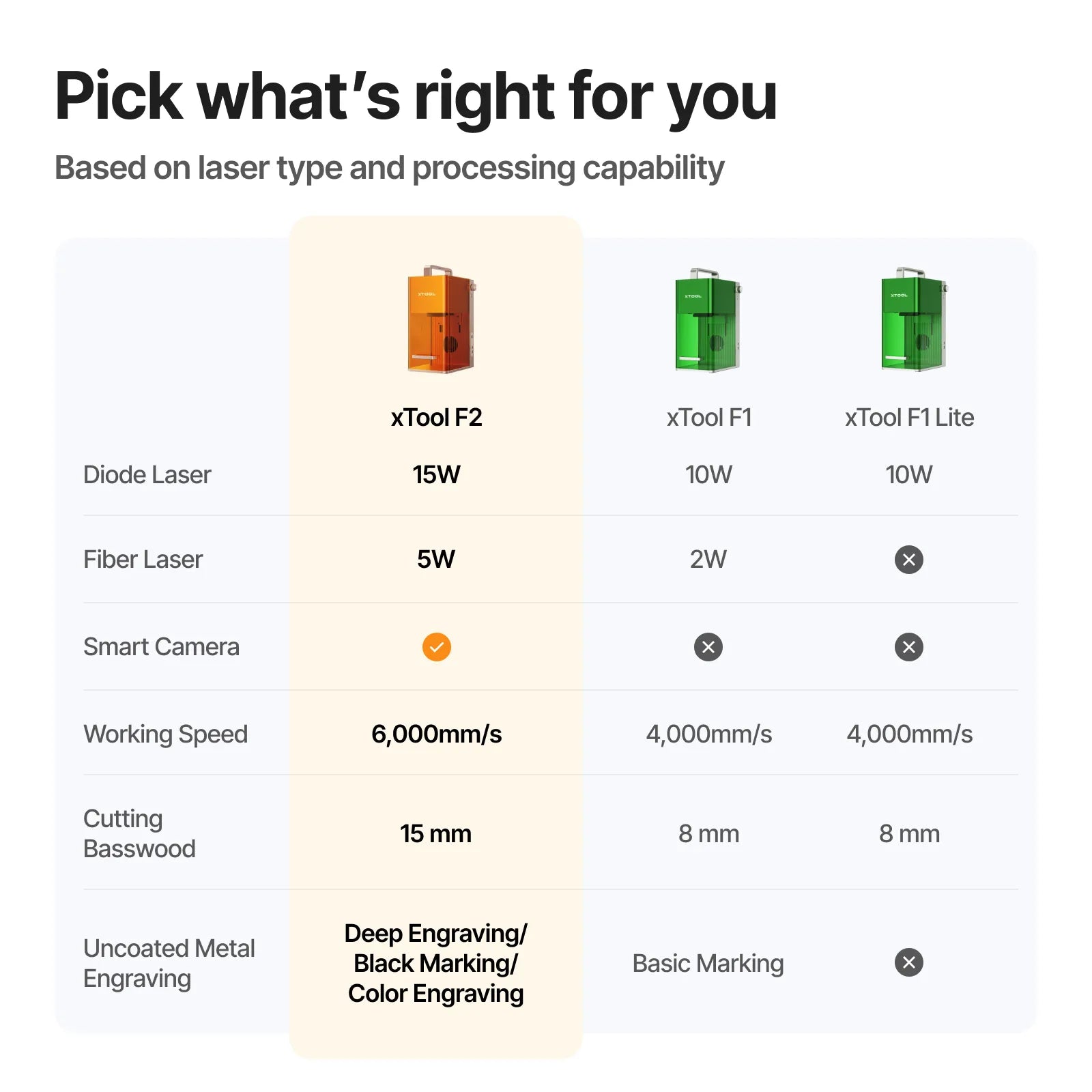

F2 vs F1 — What's New

Same Portable Form. Everything Else Upgraded.

The F1 is a great machine. The F2 is what happens when you take everything people loved about it and fix what they asked for — more power, a real camera, faster speed, and smarter batch workflow. Compatible with almost all F1 accessories, so your existing investment carries over.

xTool F1

10W Diode + 2W IR
4,000 mm/s
No built-in camera
No autofocus
No curved surface engraving
No batch processing software

xTool F2 — Upgraded

15W Diode + 5W IR
6,000 mm/s
50MP built-in camera
Autofocus
Curved surface engraving
One-click batch processing

Dual Laser — 15W Diode + 5W IR

Two Lasers. Every Material. One Portable Machine.

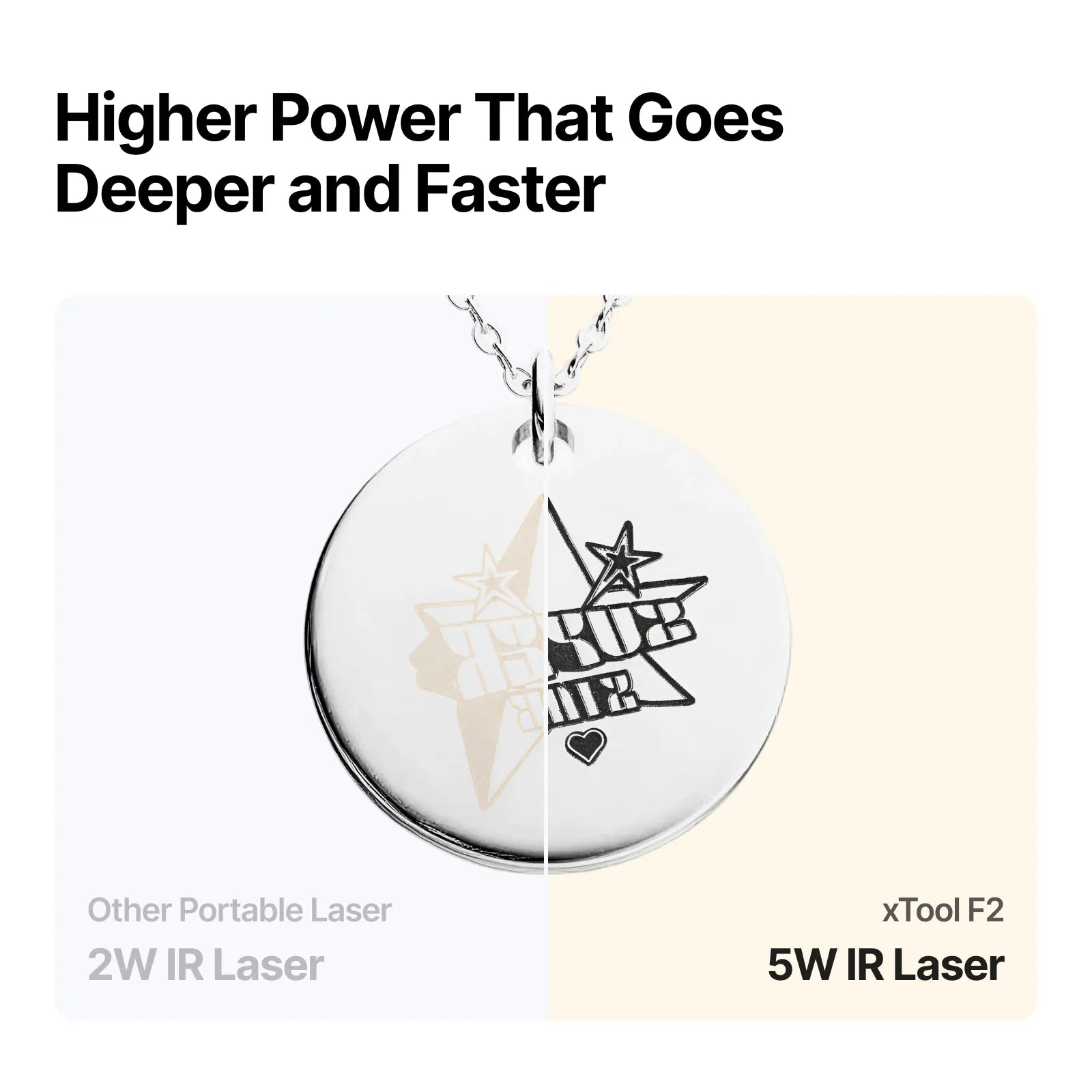

The 5W IR laser is 2.5× stronger than the F1's 2W IR — which means 2–8× faster metal engraving, consistent color marks on stainless steel, and deep black annealing without marking spray. The 15W diode cuts thicker materials and handles 3D embossing on wood and stone with more depth and less burn than its predecessor.

15W Diode

Blue Laser · 455nm

Cut: Up to 15mm basswood · 12mm black acrylic (multiple passes).

Engrave: Wood, leather, acrylic, fabric, glass, ceramic, slate, coated metals. 3D embossing on wood and stone.

5W IR

Infrared · 1064nm

Engrave bare metals: Stainless steel · Aluminum · Copper · Brass · Titanium · Gold · Silver · Platinum · Anodized aluminum.

Color marking · Deep black marking · No spray needed.

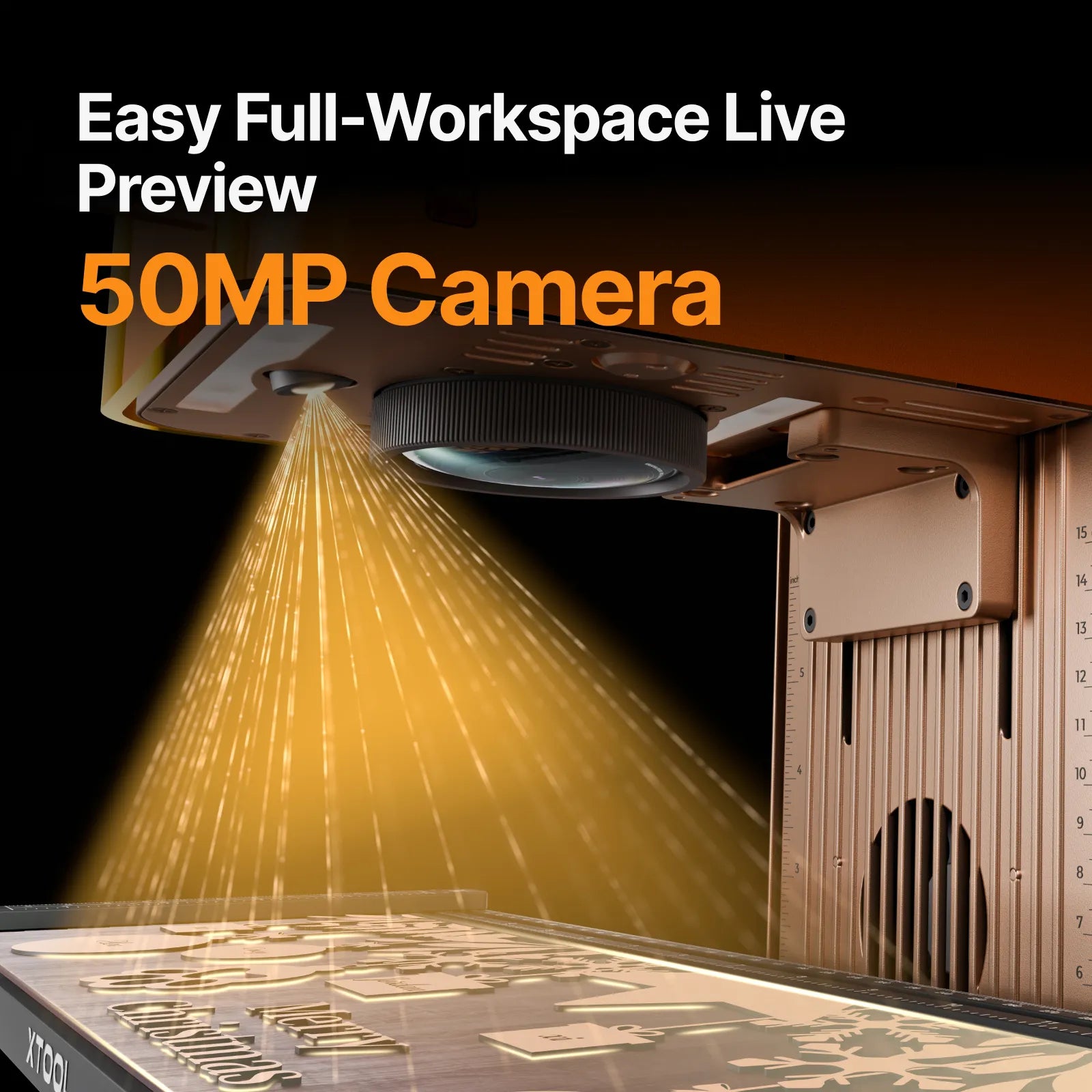

50MP Built-In Camera

The Camera the F1 Never Had.

The F1 had no camera — every positioning decision was manual or estimated. The F2's built-in 50MP camera gives you a live, full-workspace preview with 0.1mm alignment accuracy. Place your design on the material in software and see exactly where it lands — on the standard area and on the extended Slide Extension, stitched together as one seamless view.

0.1mm Alignment

Live preview with sub-millimeter accuracy. Perfect placement on small jewelry, keychains, and intricate pieces.

Autofocus

Camera-driven automatic focus — no manual adjustment. Consistent results across materials of different heights.

One-Click Batch Fill

Place multiple items at once. F2 recognizes each piece and fills the pattern automatically — no jigs, no manual repeat.

Seamless Extended Preview

With the Slide Extension, camera stitches both areas into one full panoramic view — what you see is what you get.

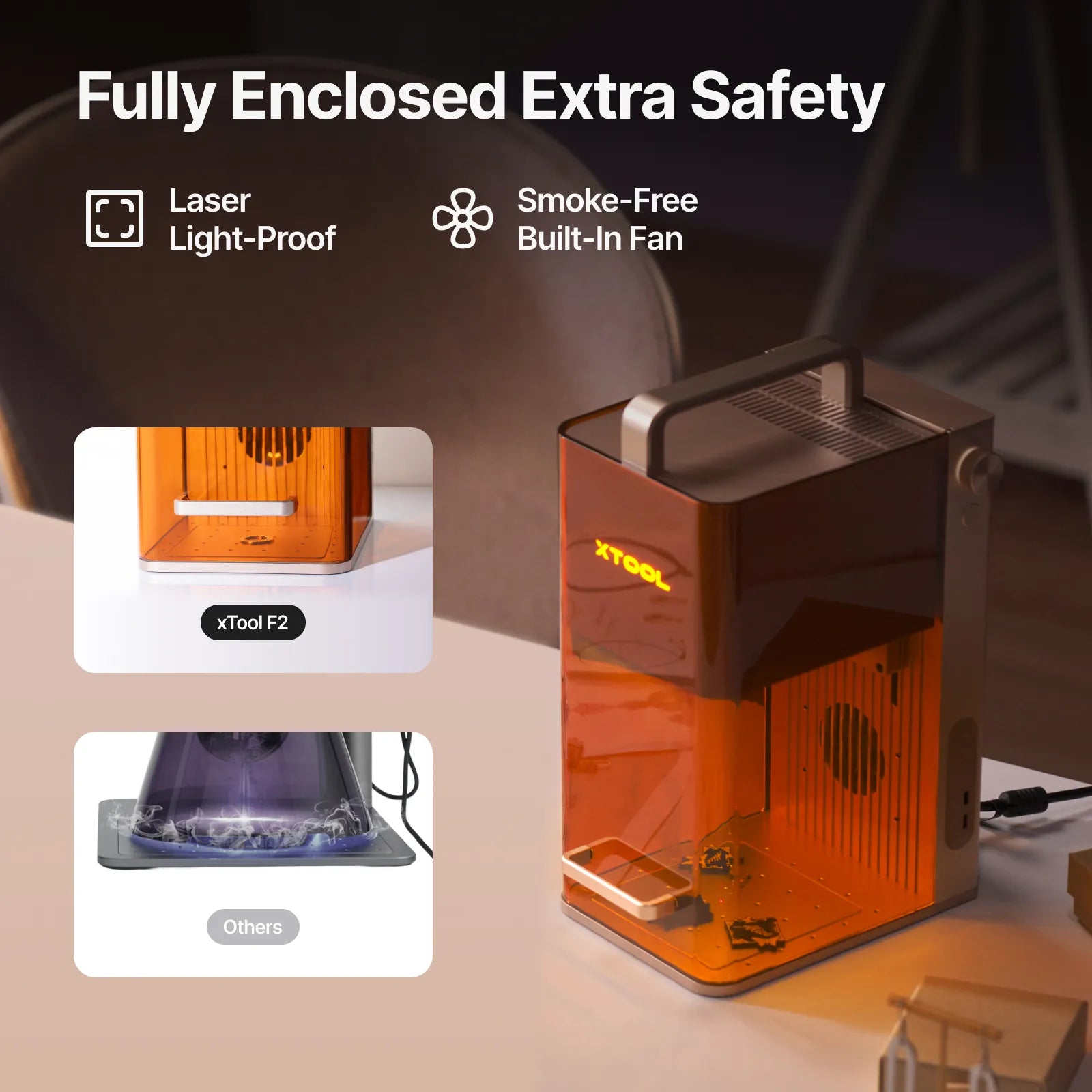

Portable & Safe

Same Compact Footprint. Goes Anywhere You Do.

The F2 keeps the F1's compact enclosed design — fully sealed eye-protection cover, built-in smoke ventilation fan, and the same carry-anywhere footprint. Ideal for craft fairs, pop-up events, on-site corporate engraving, and in-store customization services. Remove the base for oversized or curved materials. Pre-assembled and ready from the first plug-in.

Enclosed Eye Protection Fully sealed cover with laser-safe viewing window. Safe to operate in open environments.

Built-in Smoke Fan Automatic ventilation during operation. Keeps the workspace cleaner without an external purifier.

Removable Base Take off the base to engrave oversized, curved, or unconventional objects directly on the surface.

Pre-assembled Out of the box and ready to engrave. No calibration required — live position preview guides setup.

Technical Specifications

Everything You Need to Know.

Laser sources	15W Diode (455nm) + 5W IR (1064nm)
Laser spot size	Diode: 0.08×0.06mm · IR: 0.03×0.03mm
Max engraving speed	6,000 mm/s
Motion accuracy	0.00199mm
Camera	50MP built-in · 0.1mm alignment accuracy · Autofocus
Working area	115 × 115mm (expandable to 400 × 115mm with Slide Extension)
Max cutting (diode)	15mm basswood · 12mm black acrylic (multiple passes)
Max object height	120mm
Machine dimensions	175 × 237 × 334mm · 4.8 kg
Connectivity	Wi-Fi · USB
Compatible software	xTool Creative Space (XCS) · xTool Studio · LightBurn
Safety	Class 4 · Enclosed eye-protection cover · Built-in smoke fan · Thermal detection · Emergency stop
F1 accessory compatibility	Yes — RA2 Pro, RA3, Slide Extension, Pedal, Air Purifier (Rolling Hard Case excluded)
Warranty	12 months

Who Is the xTool F2 For?

For F1 Users Ready to Move Up. And First-Timers Who Want More.

F1 users upgrading Keep your accessories, double your power, gain a camera, and cut job times in half. Compatible with almost everything you already own.

On-site customization services Take to craft fairs, pop-ups, and in-store events. Engrave metal and wood on-site with 0.1mm camera alignment.

Jewelry & metal engravers 5W IR engraves gold, silver, stainless steel, titanium and more — 2–8× faster than the F1's 2W IR.

Small batch producers One-click batch fill + autofocus = set up once, engrave dozens. No repositioning, no jigs, no manual repeat.

Etsy & Shopify sellers Engrave keychains, dog tags, wooden signs, and metal jewelry — one machine that handles the full catalog.

New buyers skipping the F1 If you want the camera, the power, and the batch workflow — start here. The F1 will feel like a step back.

The F1 You Always Wanted.

15W + 5W IR. 50MP Camera. 6,000mm/s. Portable. Ready from day one.

Add to Cart →
