SOVOL SV08 High-Performance Core-XY 3D Printer with Open-Source Flexibility

Voron V2.4-Inspired CoreXY 3D Printer, 350×350×300mm, 700mm/s, Klipper

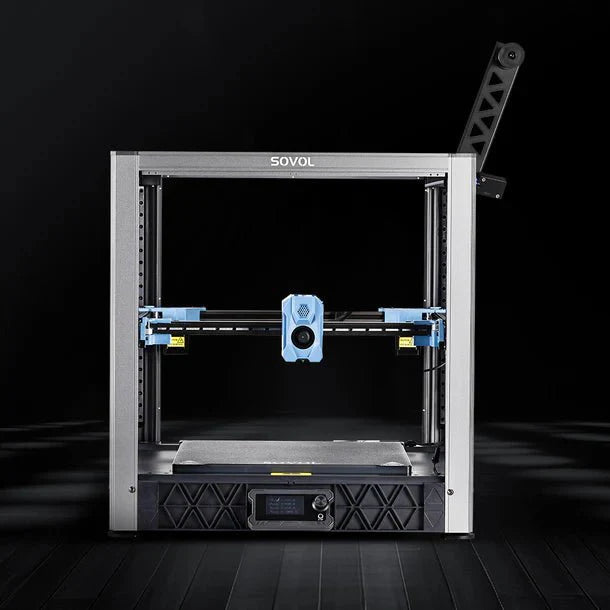

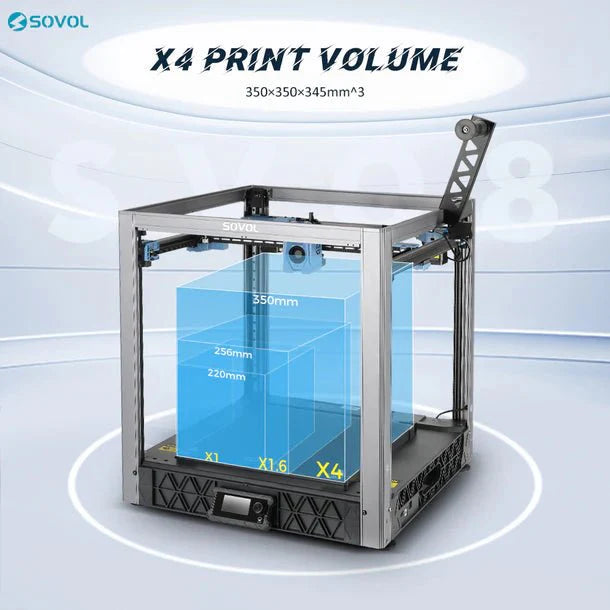

The Sovol SV08 is a large-format CoreXY 3D printer engineered around the Voron V2.4 architecture — Quad-Gantry Leveling with 4 independent Z motors, all-axis linear rails, a 350×350×300mm build volume, 700mm/s peak print speed, ceramic heating block, AC heated bed, and Klipper firmware with a built-in camera. It's the closest thing to a Voron V2.4 you can buy pre-assembled, at a fraction of the self-source cost and build time.

Need an enclosure? We have it here. Need nozzles? We have them here.

Quad-Gantry Leveling — 4 Independent Z Motors

The SV08 uses the same Quad-Gantry Leveling (QGL) system that defines the Voron V2.4. Four independent Z motors continuously compensate for gantry tilt, thermal expansion, and surface variation across the full 350mm build plate. QGL is the reason Voron V2.4 builds are trusted for high-precision, large-format work — the SV08 brings that same architecture to a pre-built machine. Combined with Klipper's adaptive bed mesh and Z-offset compensation, first layers are consistent and reliable regardless of bed temperature.

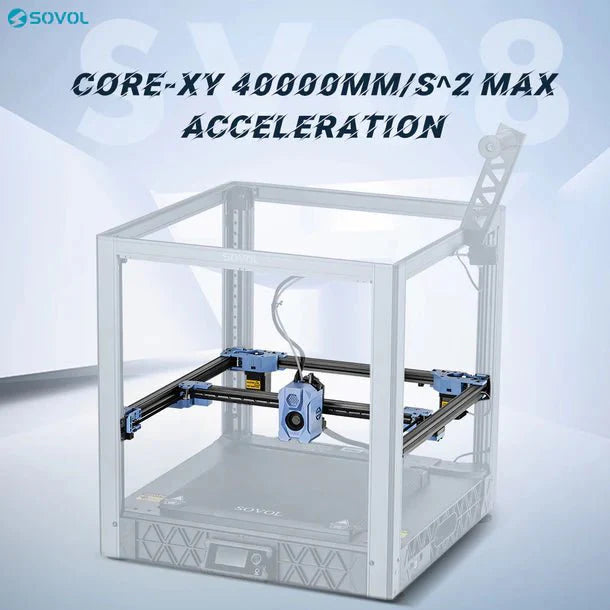

All-Axis Linear Rails + 700mm/s CoreXY

Linear rails on all axes eliminate the flex and play that rod or wheel-based systems develop over time. At 700mm/s peak speed, the SV08's CoreXY motion system needs that rigidity to maintain dimensional accuracy. Klipper's Input Shaping and Pressure Advance algorithms handle the high-speed motion control, compensating for resonance and extrusion lag to maintain print quality at aggressive speeds.

Ceramic Heating Block + AC Heated Bed

The SV08's ceramic heating block reaches 300°C rapidly — faster than standard aluminum blocks — with better temperature stability at sustained high speeds. The AC-powered heated bed reaches operating temperature significantly faster than DC beds and maintains consistent temperature across the full 350mm surface. For large prints where bed temperature uniformity directly affects warp behavior, the AC bed is a meaningful advantage.

Planetary Gear Extruder + Integrated Hotend

The SV08 uses a planetary gear extruder for high torque and consistent filament grip — the gear reduction allows the motor to deliver more force with less mass on the toolhead. The integrated hotend design minimizes the distance between the extruder drive and the melt zone, reducing flex and improving retraction performance at high speeds.

Klipper Features — Full Suite Included

• Quad-Gantry Leveling (QGL) — automatic, runs before every print
• Adaptive bed mesh — leveling grid matched to actual model footprint
• Z-offset compensation — automatic first layer calibration
• Fall-free flying gantry — gantry stays level when power is cut
• Input Shaping — resonance compensation for clean prints at high speed
• Pressure Advance — precise extrusion at corners and speed transitions
• Remote monitoring — built-in camera with real-time viewing and time-lapse

Specifications
