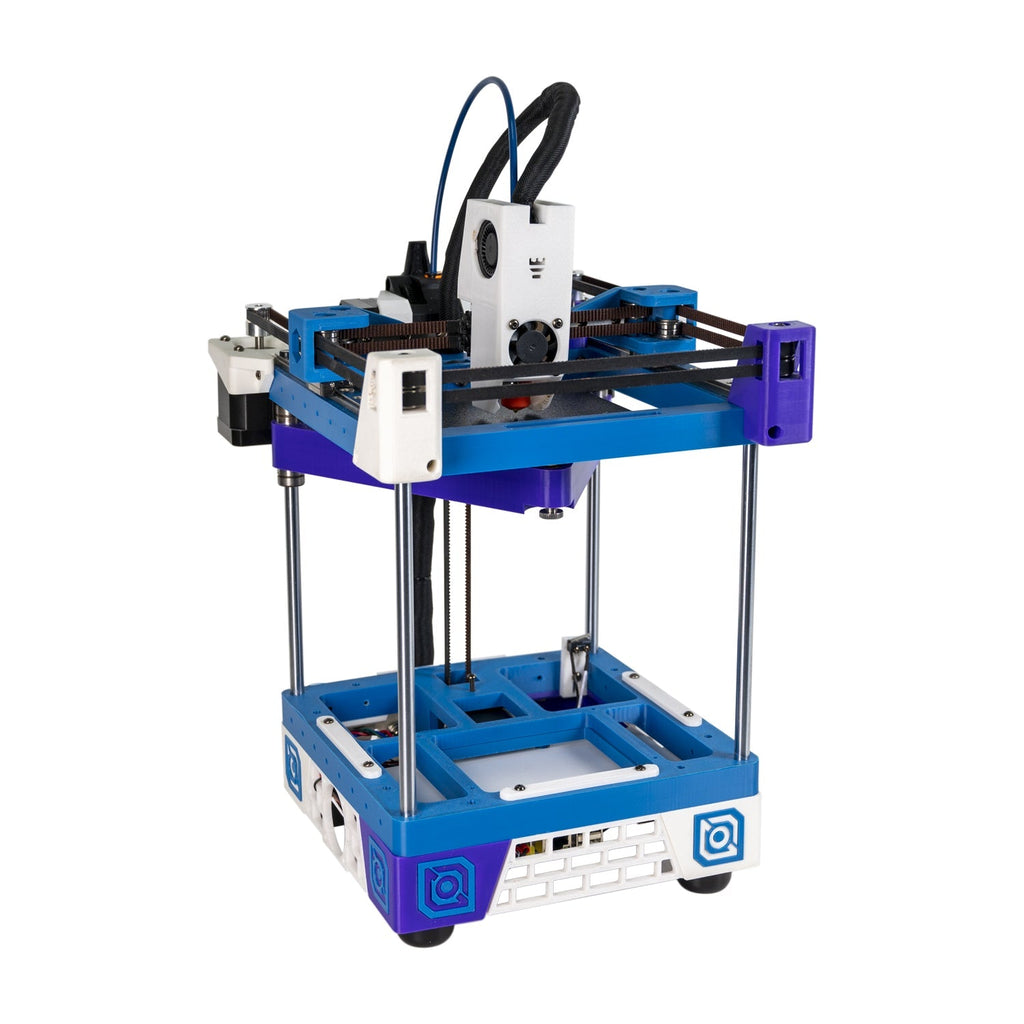

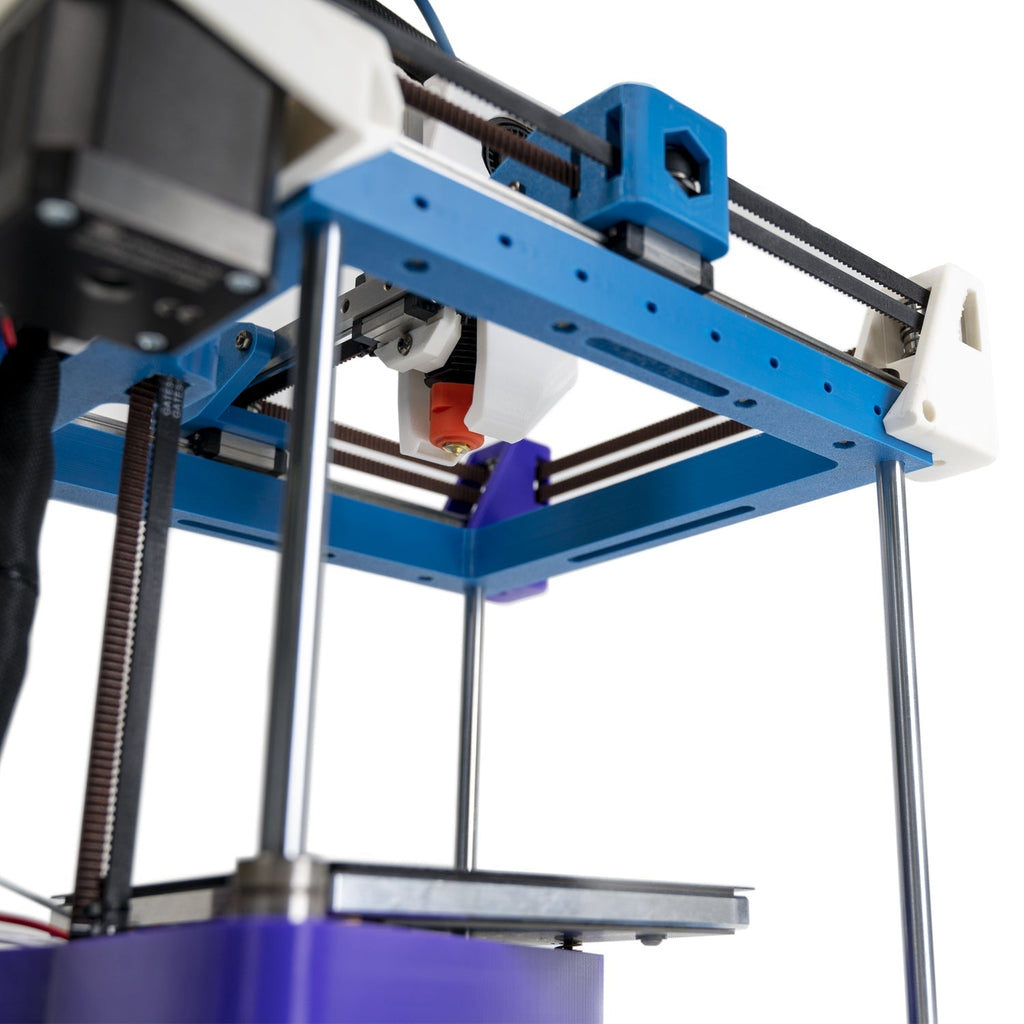

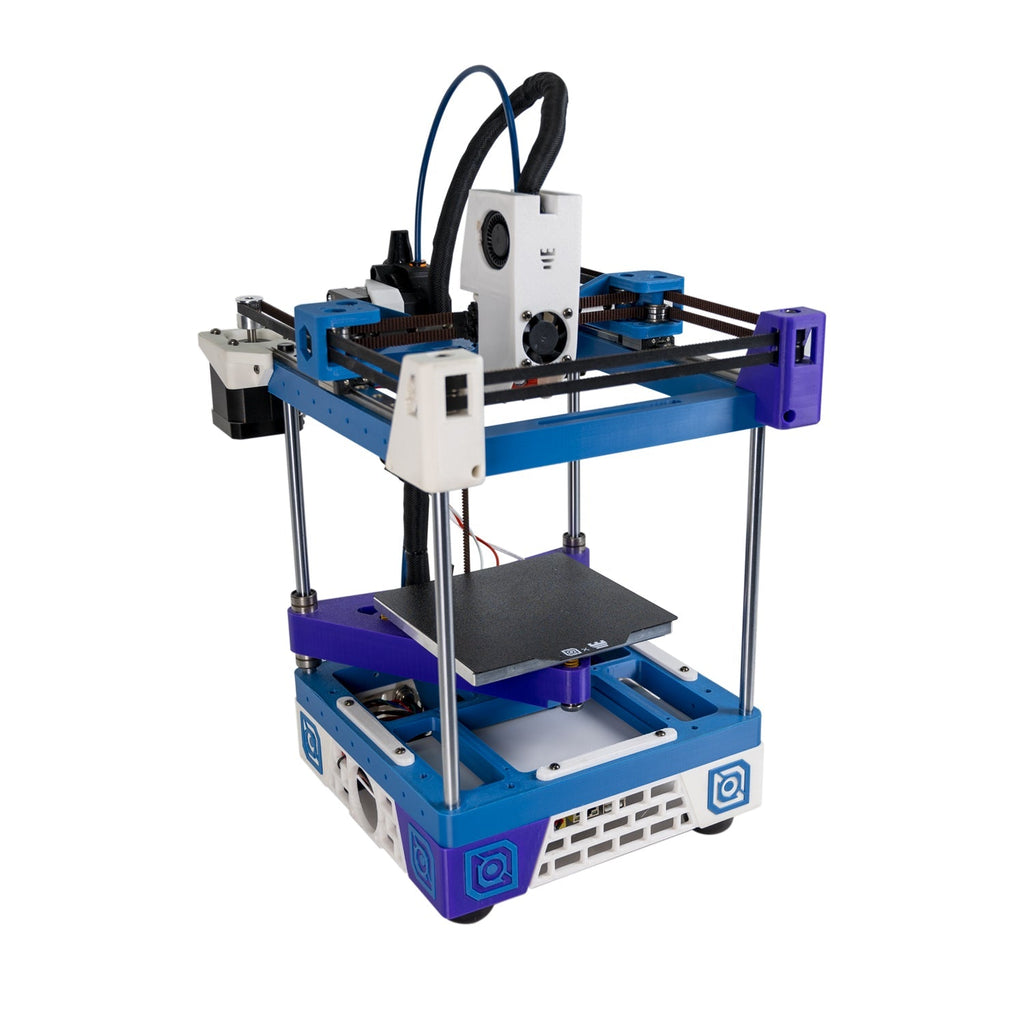

The Rook MK1 is a compact CoreXY 3D printer kit designed by Rolohaun — a community builder who created the Rook as a fun, satisfying build that produces a genuinely capable machine. At 110×110×110mm build volume in a 220×275×370mm footprint, it's small, fast for its size, and built with quality components: LDO motors, LDO linear rails, a Triangle Lab TR6 ceramic hotend, Trianglelab DDB extruder, BTT Manta M4P mainboard with BTT CB1, and Klipper firmware. Every purchase directly supports Rolohaun and future community projects.

Note: Printed parts are not included in the default kit. You can purchase them separately from West3D, print your own from the Printables page, or find community mods by Gulsifer and others.

Why the Rook MK1?

The Rook MK1 exists because building a 3D printer should be as enjoyable as using one. It's a weekend project with a clear build guide, an active community on GitHub and Printables, and a component selection that reflects genuine quality rather than cost-cutting. LDO motors and rails instead of generic equivalents. A ceramic-core hotend instead of a standard block. A BTT Manta M4P with CB1 running Klipper instead of a locked-down proprietary board. The result is a small machine that's easy to understand, easy to modify, and produces clean prints with PLA and PETG right out of the build.

Key Components

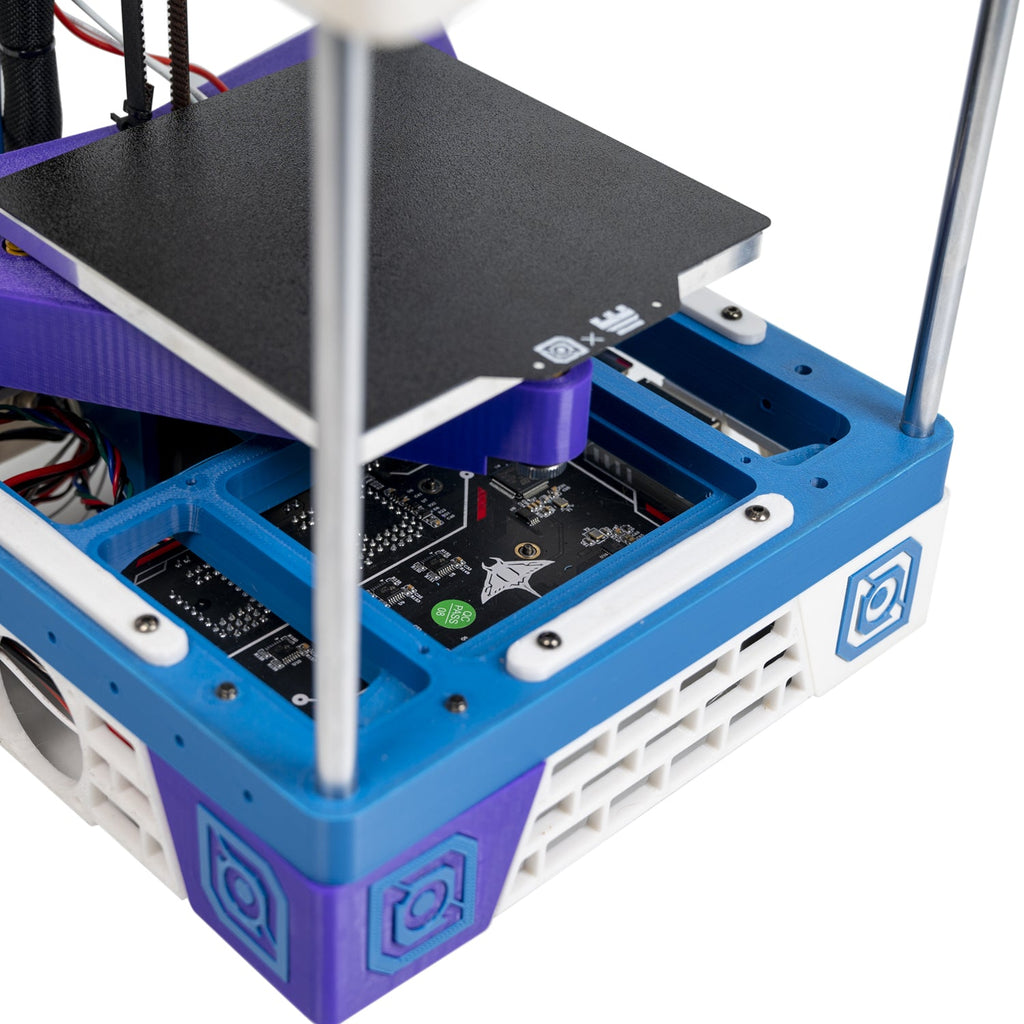

BTT Manta M4P V2.2 + BTT CB1 V2.2 — Klipper-ready board with onboard SBC, no separate Raspberry Pi required
4× TMC2209 stepper drivers — silent, reliable, Klipper-compatible
LDO motor kit — LDO-42STH48-2504MAC(F) for XY, LDO-42STH40-1684AC for Z (slow-drop), LDO-42STH25-1004AC for E
LDO linear rails — SLR9C 200mm (×2 Z), SLR9C 150mm (×1) + 8mm linear rods (×4)
Triangle Lab TR6 ceramic heating core hotend — faster heat-up, better temperature stability than standard aluminum blocks
Triangle Lab DDB extruder — dual drive, reliable grip for PLA and PETG at 150–200mm/s
120×120mm spring steel flex plate with magnetic pad and 24V 100W PI film heater (installed, with thermal fuse)
LDO MK1 200W PSU — certified (UL, CUL, TUV, CB, CE, FCC, UKCA)

Specifications

Model	LDO-MK1
Motion System	CoreXY
Build Volume	110 × 110 × 110 mm
Print Speed	150–200 mm/s
Hotend	Triangle Lab TR6 — ceramic heating core Model B
Extruder	Triangle Lab DDB — dual drive
Max Bed Temperature	110°C
Build Surface	120×120mm spring steel flex plate — textured PEI, magnetic
Mainboard	BTT Manta M4P V2.2 + BTT CB1 V2.2
Stepper Drivers	4× TMC2209
Motors	LDO MK1 Motor Kit — XY, Z (slow-drop), E
Linear Motion	LDO SLR9C rails (200mm ×2, 150mm ×1) + 8mm rods ×4
Firmware	Klipper
Filament Diameter	1.75mm
Compatible Filaments	PLA, PETG
Power Supply	LDO MK1 200W — certified PSU
External Dimensions	220 × 275 × 370 mm (assembled)
Kit Weight	5.5 kg gross
Printed Parts	Not included — available separately or from Printables

Full Parts List

Category	Item	Qty
Motion & Fasteners	Open Belt, 2GT, 6mm, 4m	1
	Pulley, 2GT, 20T (5mm ID, 6mm W)	3
	Bearing, F695-2RS	20
	Linear Bearing, 8×15×45mm	2
	Bowden Tube, 0.5m	1
	M3×4×5 Heat Set Inserts (Rookery Toolhead)	5
	M3×8×5 Heat Set Inserts (Rookery Toolhead)	13
	M3 Nuts	100
	M5 Shim Washers (10×1mm)	32
	Rubber Feet (4×32×22mm)	4
	Set Screw, M4×4 (thread-locked)	8
	Zip Ties	20
	BHCS Screws — M2, M2.5, M3, M5 (full assortment)	Various
	Electronics	TMC2209 Stepper Drivers	4
		SD Card, 32GB	1
		Wire Sleeve, 1m	1
		Cable Kit	1
	Linear Rail Kit	LDO SLR9C Rail, 200mm	2
		LDO SLR9C Rail, 150mm	1
		Linear Rod, 8×200mm	4
	Build Plate & Parts	Aluminum Build Plate, 120×120mm	1
		PI Film Heater, 24VDC 100W (installed, thermal fuse included)	1
		Spring Steel Flex Plate, 120×120mm textured	1
		Magnetic Pad, 120×120mm	1
		Die Springs, Yellow, 8×4×20mm	3
		Knurled Nut, M3	3
	Motor Kit	LDO-42STH25-1004AC (E motor), 50cm cable	1
LDO-42STH40-1684AC — Z motor, slow-drop, 20mm cable		1
LDO-42STH48-2504MAC(F) — XY motors, 50cm cable		2
Other	LDO MK1 PSU EA11811K-240, 200W	1
	Triangle Lab DDB Extruder	1
	Triangle Lab TR6 Ceramic Heating Core Hotend Model B	1
	BTT Manta M4P V2.2	1
	BTT CB1 V2.2	1
	C13 Power Cord	1
