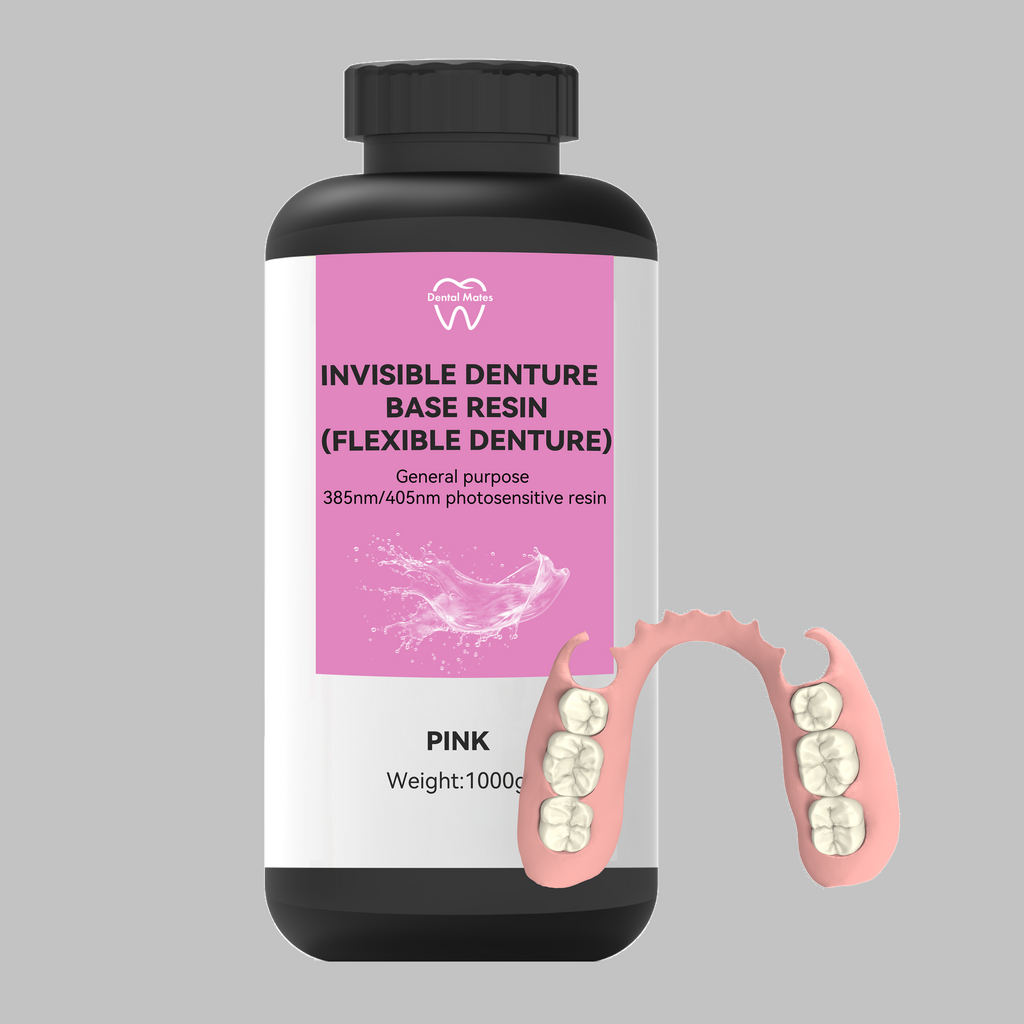

Invisible Denture Base Resin for DLP and LCD Printers 500g or 500ml

Flexible, Tissue-Matching 3D Printing Resin for Clasp-Free Removable Dentures

This invisible denture base resin is engineered for dental laboratories and clinicians producing removable partial or full dentures without metal clasps. The "invisible" in the name refers to exactly that: the elastic nature of this resin grips the natural undercuts of the oral anatomy for retention — no visible metal hardware needed. The result is a denture that is lighter, more discreet, and more comfortable for the patient than traditional acrylic or metal-frame alternatives.

The gum-matched translucent tone blends naturally with surrounding soft tissue, making the denture virtually undetectable during wear and dramatically improving patient acceptance — especially for anterior partial cases where aesthetics are non-negotiable.

⚠️ Critical Information Before Clinical Use

• ⚠️ Verify biocompatibility documentation before patient use. This resin is intended to be worn inside a patient's mouth. Before dispensing any 3D-printed denture to a patient, confirm that the material's biocompatibility has been validated per ISO 10993 or equivalent standards applicable in your jurisdiction. Dental professionals bear full clinical and regulatory responsibility for patient-contact materials. Contact the supplier for the current Safety Data Sheet (SDS) and any available biocompatibility certificates.
• UV wavelength: Compatible with DLP and monochrome LCD printers in the 385–405 nm range. Verify your printer's light source before purchasing.
• Post-curing is mandatory for patient safety. Uncured or under-cured resin retains unpolymerized monomers that can cause oral tissue irritation or allergic reactions. Full post-cure per the manufacturer's protocol is required before any patient delivery.
• PPE required during fabrication: Wear nitrile gloves and safety glasses when handling uncured resin. Uncured photopolymer is a skin and eye irritant. Work in a well-ventilated area and keep resin away from food, beverages, and children.
• Shake before every use: Pigments and photoinitiators settle over time. Mix thoroughly before pouring into the vat. Inconsistent mixing results in color variation and unreliable print performance across the build plate.
• Storage: Keep tightly sealed in a cool, dark place away from heat sources and direct sunlight. Exposure to ambient light will partially cure the resin in the bottle. Shelf life is typically 12 months from manufacture when stored correctly.

What Makes This an "Invisible" Denture Resin?

Traditional removable partial dentures use metal clasps to grip adjacent teeth for retention. Those clasps are visible when the patient speaks or smiles — a major aesthetic concern, particularly in anterior areas. Invisible denture resins solve this by using the material's controlled elasticity to snap into and grip natural undercuts in the oral anatomy, holding the appliance in place without any metal framework.

Think of it like a flexible phone case that grips its shape around the phone — the elastic memory of the resin does the retention work. The denture can be inserted and removed by the patient, but stays securely in place during normal function.

Key Material Properties

• Tissue-matched translucency: The gum-toned, semi-translucent color mimics the optical behavior of natural gingival tissue — it diffuses light rather than blocking it, which is what makes the denture look like soft tissue rather than plastic.
• Controlled elasticity for clasp-free retention: The cured resin has enough flex to engage anatomical undercuts for retention without requiring rigid metal clasps — eliminating the most visible component of traditional partial dentures.
• Wear resistance: Formulated to withstand long-term chewing forces and daily insertion/removal cycles without cracking, deforming, or losing retention over time.
• Lightweight comfort: Significantly lighter than metal-frame alternatives, reducing the burden on the residual ridge and improving patient compliance, especially for full-time wear cases.
• Low viscosity formulation: Flows cleanly off printed surfaces back into the vat after printing, making cleanup faster and reducing resin waste per build.
• High surface detail: Reproduces fine gingival texture and contour detail needed for natural emergence profiles and patient-accepted aesthetics.

Clinical Applications

• Removable partial dentures (RPD) without metal clasps — anterior and posterior
• Full removable dentures requiring tissue-matched aesthetics
• Implant-retained overdenture bases
• Cleft palate prosthetics and obturators
• Try-in denture bases for patient approval prior to final fabrication

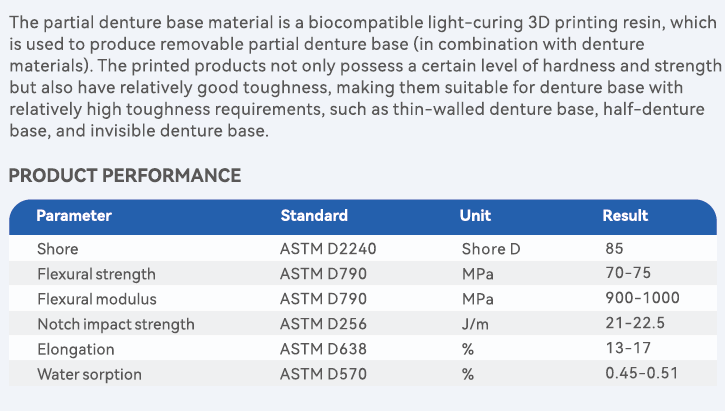

Technical Specifications

Recommended Print Settings

⚠️ Flexible denture base resins require specific tuning compared to rigid dental resins. The elasticity of the material makes it more sensitive to over-exposure, which reduces flexibility in the final part. Always run a calibration print before producing patient appliances, and verify flexibility and color by handling the cured test piece before committing to a full denture build.

Post-Processing Instructions

1. Remove from build plate carefully. Flexible resins can deform under excessive spatula pressure — work slowly and support the part as it releases.
2. Remove supports immediately while the part is still slightly green-state (pre-post-cure), as flexible materials become harder to trim cleanly after full curing.
3. Wash in IPA or 95% ethanol for 5–10 minutes using an ultrasonic bath or gentle agitation. Do not over-wash — prolonged IPA exposure can affect the surface and mechanical properties of elastic resins. Use fresh solvent for the final rinse.
4. Air dry completely before post-curing. Residual IPA on the surface during UV curing can interfere with the final surface finish.
5. Post-cure under UV per the manufacturer's recommended time and temperature. ⚠️ Do not over-cure — excessive UV exposure reduces elasticity and can make the denture base brittle, defeating its primary retention mechanism.
6. Polish and finish using standard dental polishing protocols. Verify the final flexibility and fit on the cast before patient delivery.

Who Is This Resin For?

This invisible denture base resin is the right choice if:

• You work in a dental laboratory or clinic producing removable partial or full dentures for patients who want an aesthetic, metal-free solution.
• Your patients are concerned about visible metal clasps in anterior areas, or have nickel/metal sensitivities that rule out traditional framework designs.
• You own a 385–405 nm DLP or monochrome LCD printer and want to expand your digital denture workflow beyond rigid acrylic.
• You are looking for a 500g / 500ml bottle — ideal for laboratories with moderate volume denture production that want a smaller format before committing to larger quantities.

This resin is NOT the right choice if you need a rigid denture base with higher flexural strength for full-arch implant-supported cases, or if you require a material with verified biocompatibility documentation for your regulatory environment and that documentation is not yet confirmed for this product. For surgical or biocompatible applications, see our Dental Surgical Resin collection.
