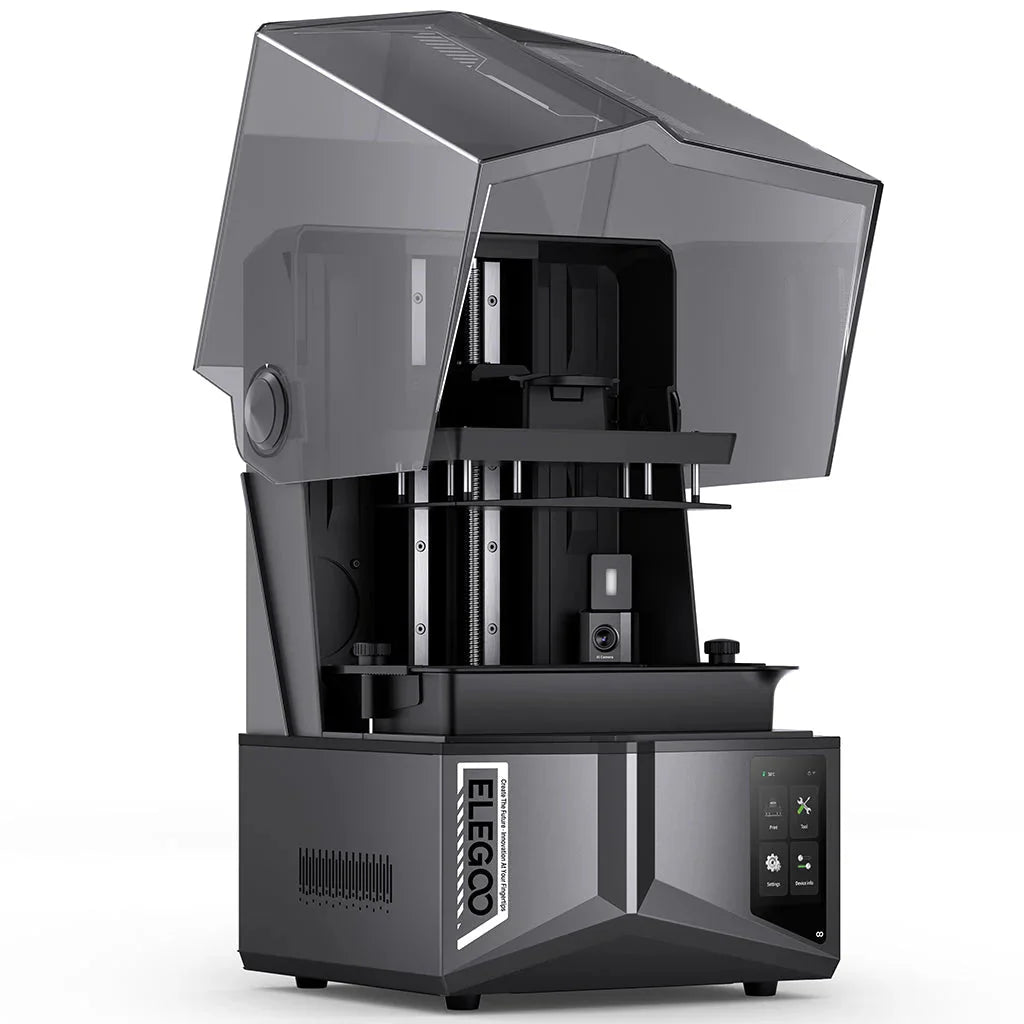

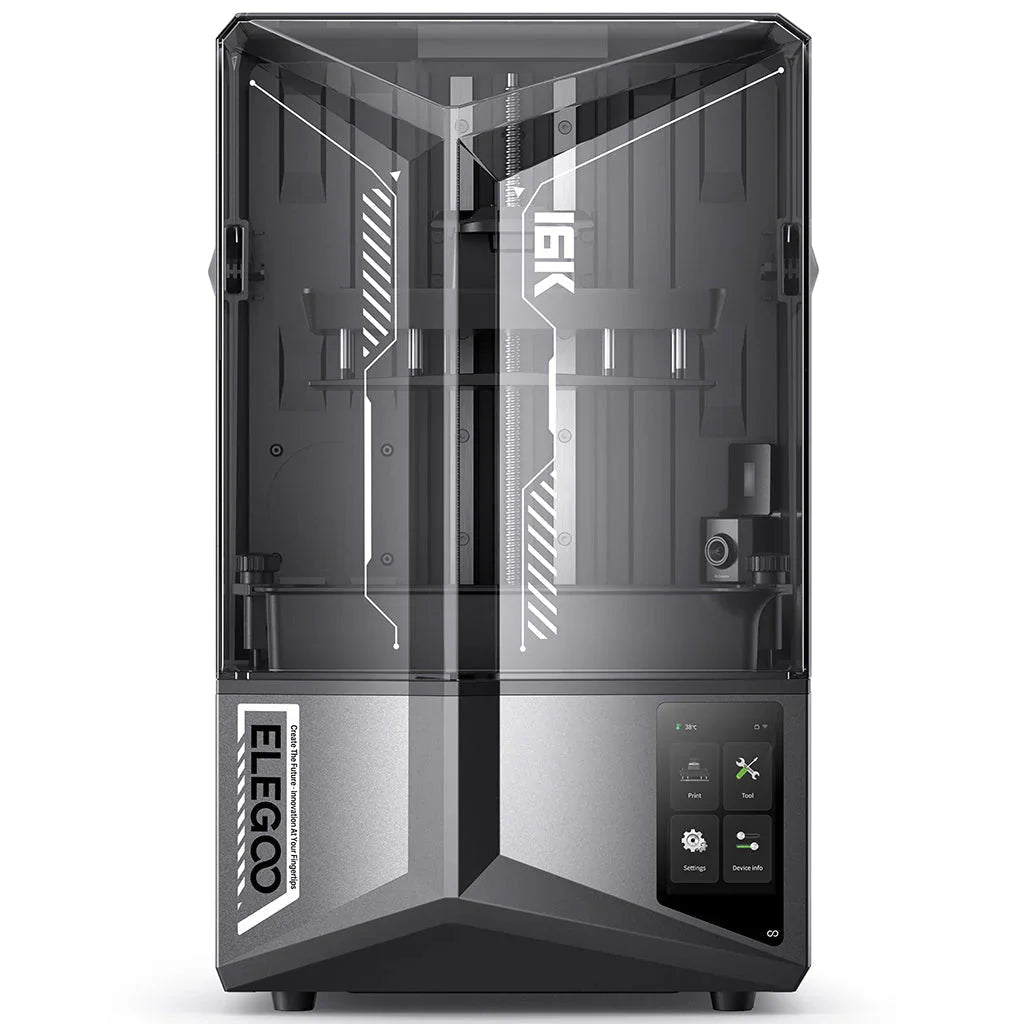

Elegoo Saturn 4 Ultra 16K: High-Speed, Ultra High-Precision SLA Resin 3D Printer

Elegoo Saturn 4 Ultra 16K — MSLA Resin 3D Printer, 14×19 µm, Tilt Release, AI Camera

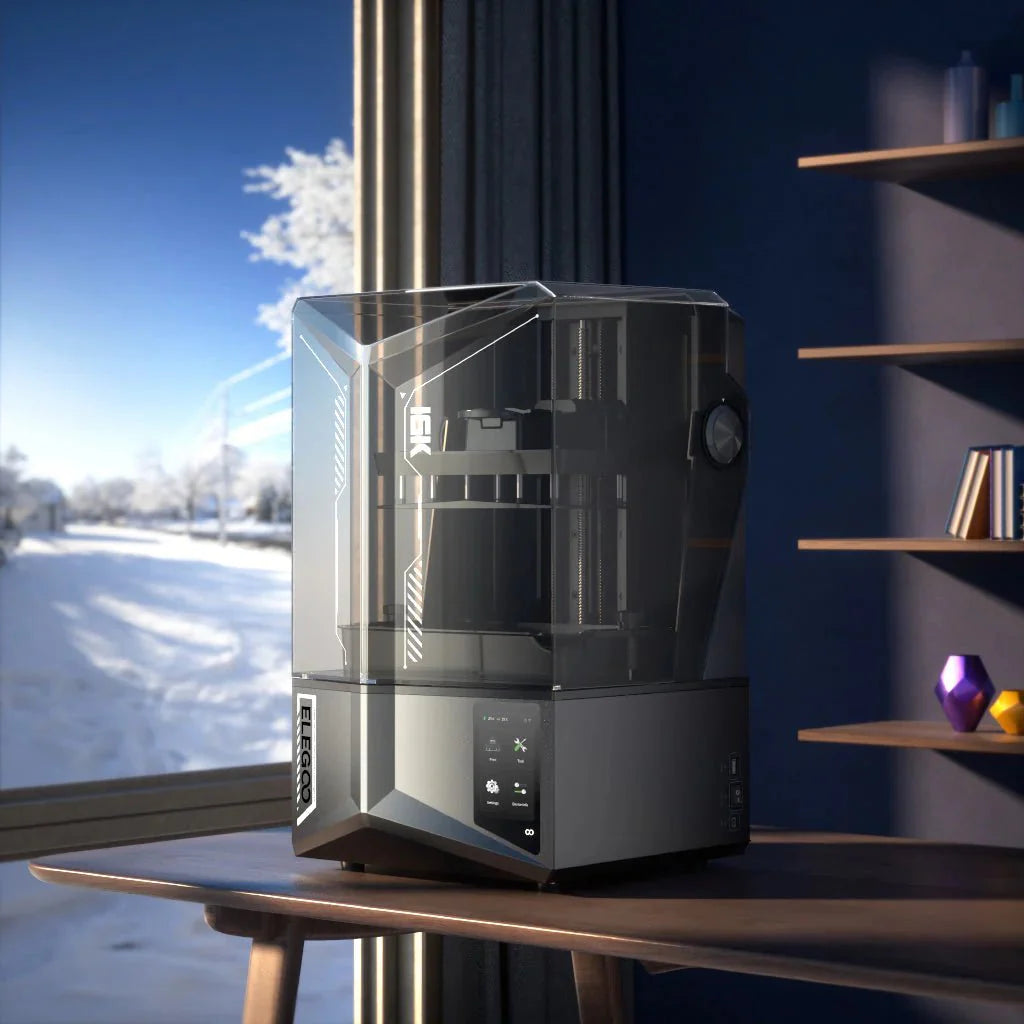

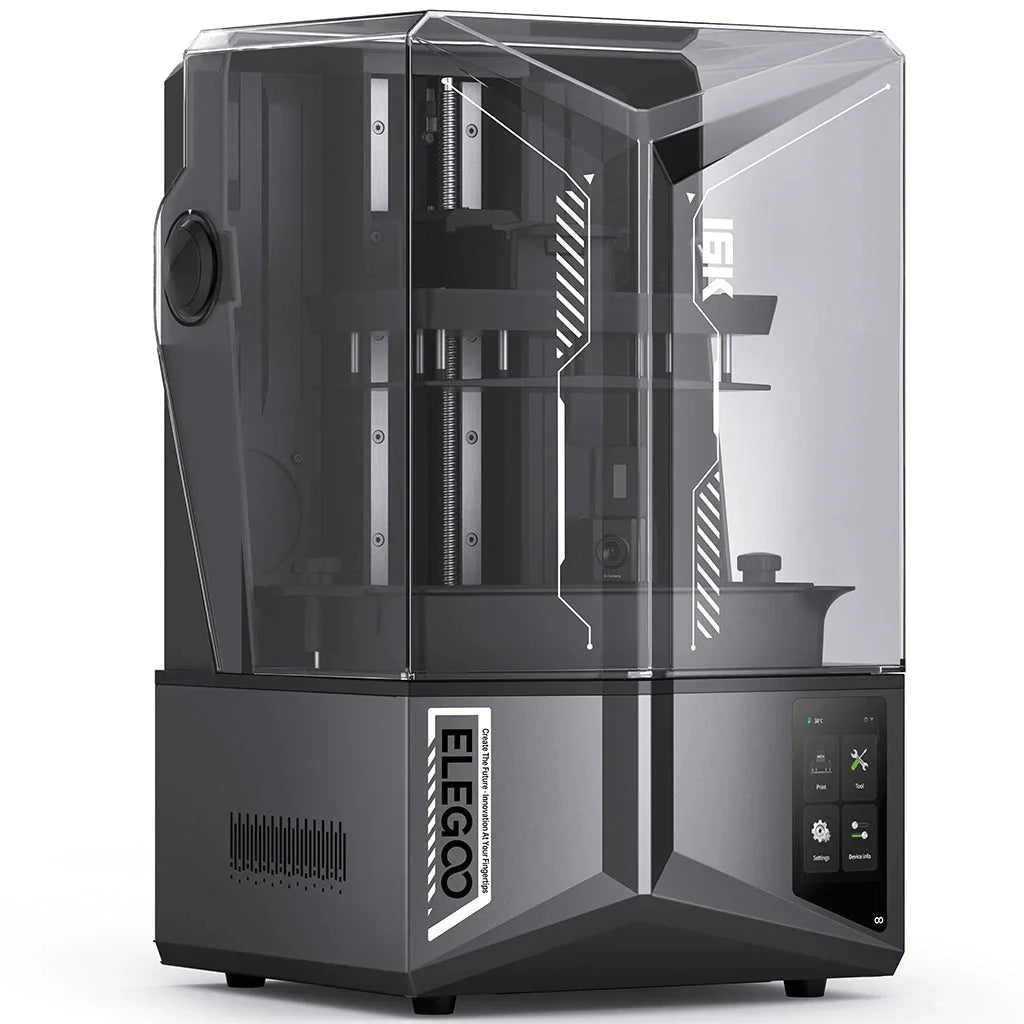

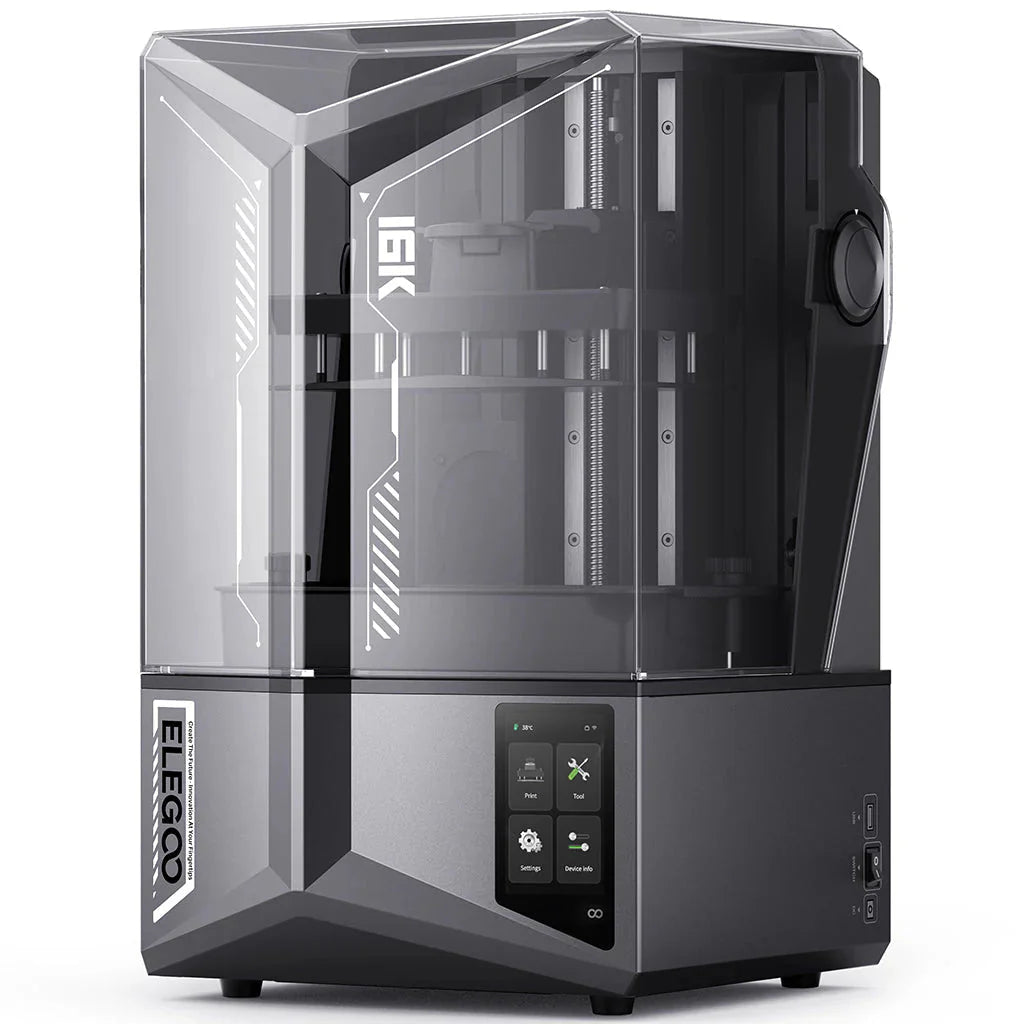

The Elegoo Saturn 4 Ultra 16K is the top-tier model in the Saturn 4 lineup — a 10" 16K MSLA resin printer with 14×19 µm XY resolution, Tilt Release Technology for speeds up to 150mm/h, smart tank heating at 30°C, an AI camera with chamber lighting, and dual-band Wi-Fi with cluster printing support. It delivers professional-grade detail in a machine that's genuinely easy to set up and operate from day one.

16K Resolution — 14×19 µm Pixel Size, COB + Fresnel Lens

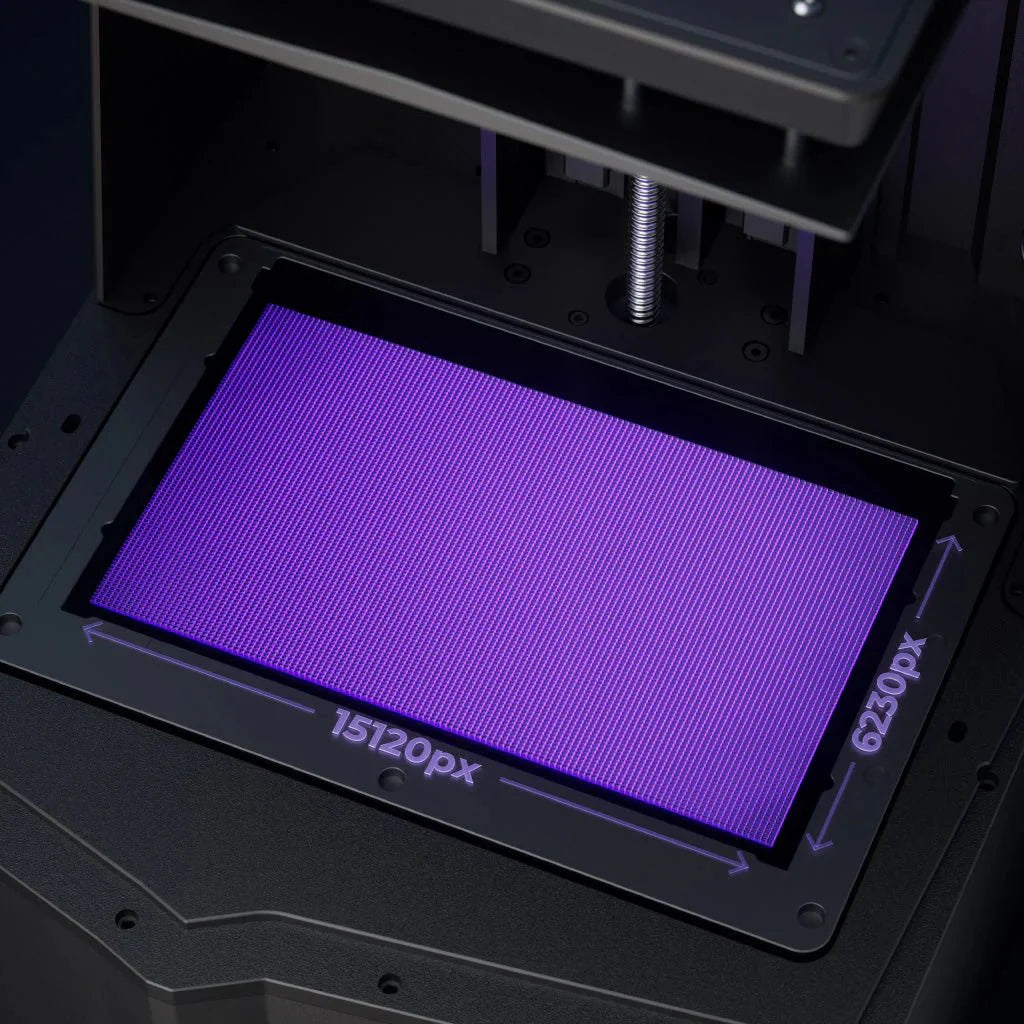

The Saturn 4 Ultra 16K's 10-inch monochrome LCD delivers a native resolution of 15120×6230 pixels — a true 16K panel with an XY pixel size of just 14×19 µm and Z-axis accuracy of 0.02mm. The COB light source paired with a Fresnel collimator lens provides uniform UV distribution across the full build plate, with 5 mW/cm² light power — 25% stronger than the previous generation — for faster, more consistent curing edge to edge. A 9H tempered glass protective cover shields the LCD from scratches and resin splatter.

Tilt Release Technology — Up to 150mm/h

Instead of pulling the build plate straight up after each layer — the traditional method that creates high peel forces and risks model deformation — the Saturn 4 Ultra 16K tilts the resin vat at an angle to separate the cured layer from the PFA release film. This dramatically reduces stress on the model during peeling, cutting failure rates while enabling print speeds up to 150mm/h with layer times as short as 5.5 seconds. Tilt Release is the single most impactful reliability advancement in modern MSLA printing, and the Saturn 4 Ultra 16K executes it well.

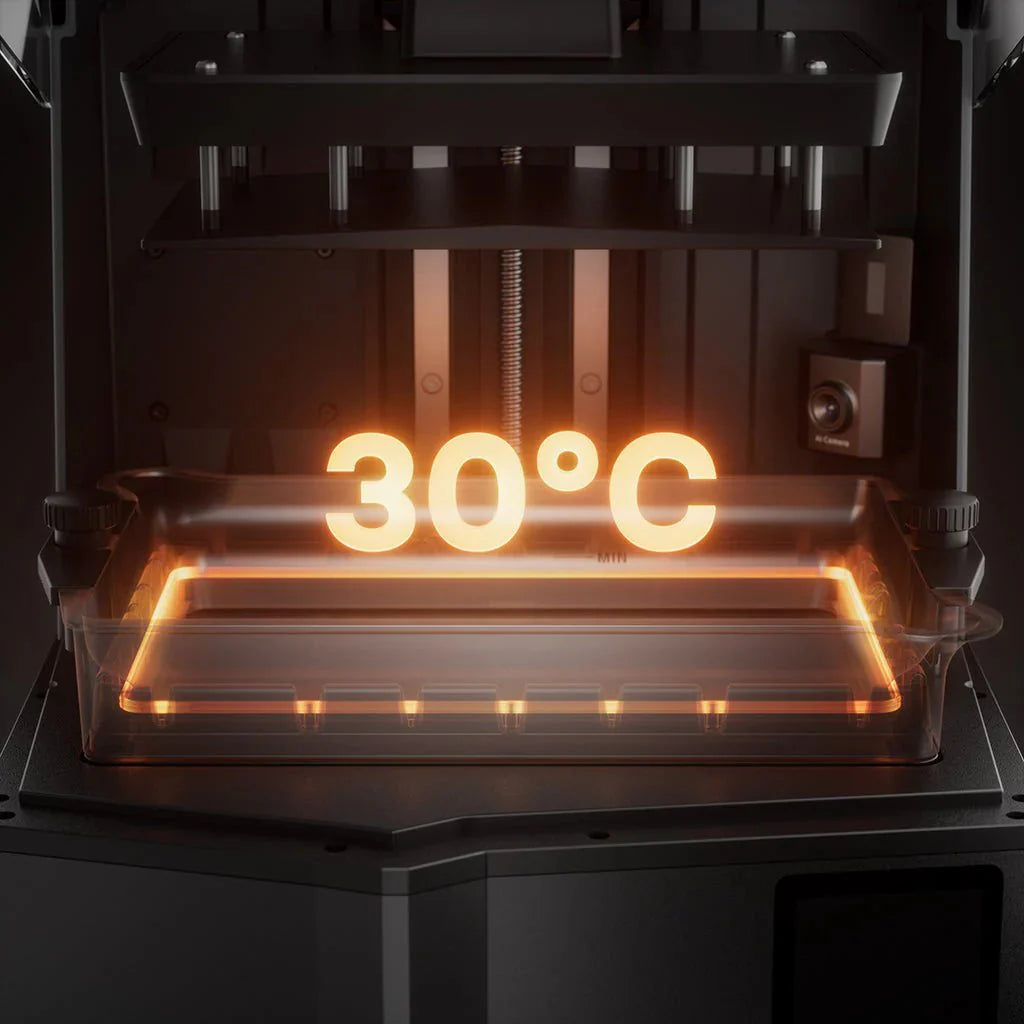

Smart Tank Heating — Resin at 30°C Automatically

Cold resin flows poorly and cures inconsistently — the root cause of many resin print failures in cool environments. The Saturn 4 Ultra 16K's integrated heating system monitors vat temperature in real time and maintains resin at a consistent 30°C automatically. It supports 24-hour preheating and can bring resin from 5°C ambient to 30°C in approximately 26 minutes. Better viscosity means better layer adhesion, fewer bubbles, and significantly higher success rates for complex or tall models.

AI Camera + Smart Mechanical Sensor

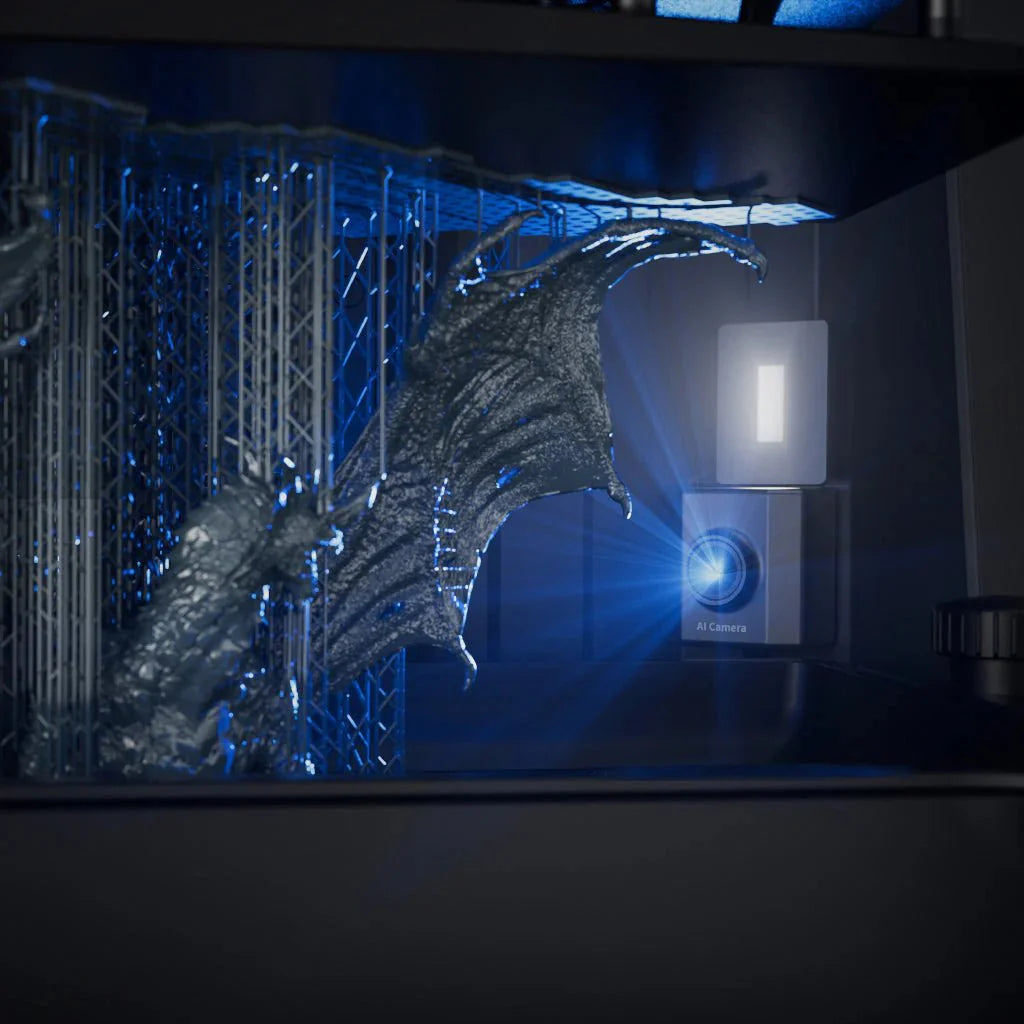

The built-in AI camera includes an internal chamber light for clear visibility in any ambient lighting condition. It monitors prints in real time and detects two of the most common failure modes automatically: empty build plate (supports failed) and model warping. Time-lapse recording captures the full print journey. The smart mechanical sensor independently monitors for residue on the LCD, resin shortage, leveling failures, and LED overheating — automatically pausing the print if LED temperature exceeds 80°C to protect the screen. Power-loss recovery resumes printing from the last checkpoint after any power interruption.

Specifications

Who Is This For?

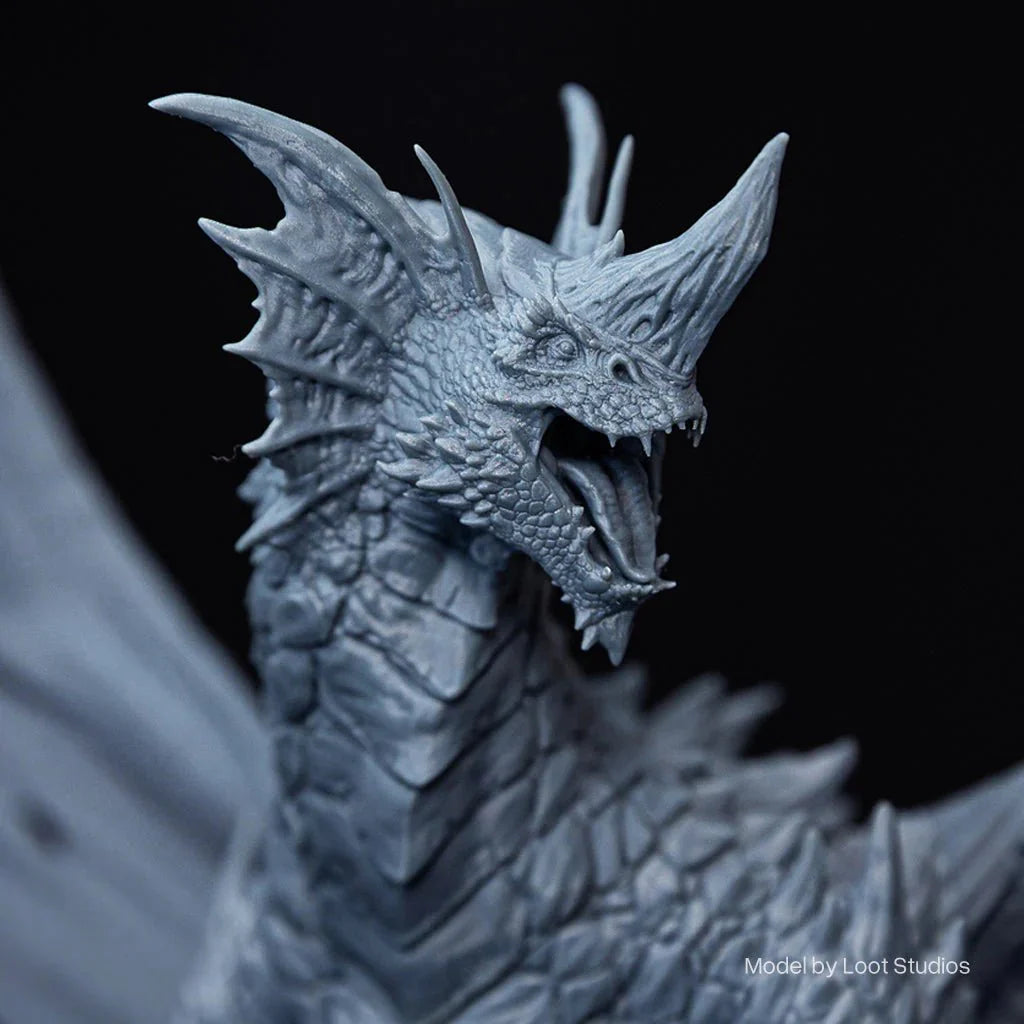

The Saturn 4 Ultra 16K is the right choice for tabletop miniature creators who need every scale and texture to land perfectly, jewelry designers and dental professionals requiring micron-level accuracy, product designers prototyping complex parts, and small studios or print farms running multiple machines via cluster printing. At the 14×19 µm pixel size, it's the same resolution class as machines costing significantly more — with smart automation that reduces the hands-on time resin printing typically demands.

SatelLite Slicer — Elegoo's Free Solution

The Saturn 4 Ultra 16K ships with compatibility for Elegoo's own SatelLite slicer — a free, feature-complete slicing solution with no ads or paywalls. SatelLite includes advanced EVO Support with over 90% success rate on support structures, model repair, Boolean operations, and runs approximately twice as fast as competing slicers. It also works with any resin brand, not just Elegoo. Chitubox and Lychee are also fully supported if you prefer them.
