DXC Extruder for Creality K1 / K1 Max and K1C by Devil Design and Phaetus

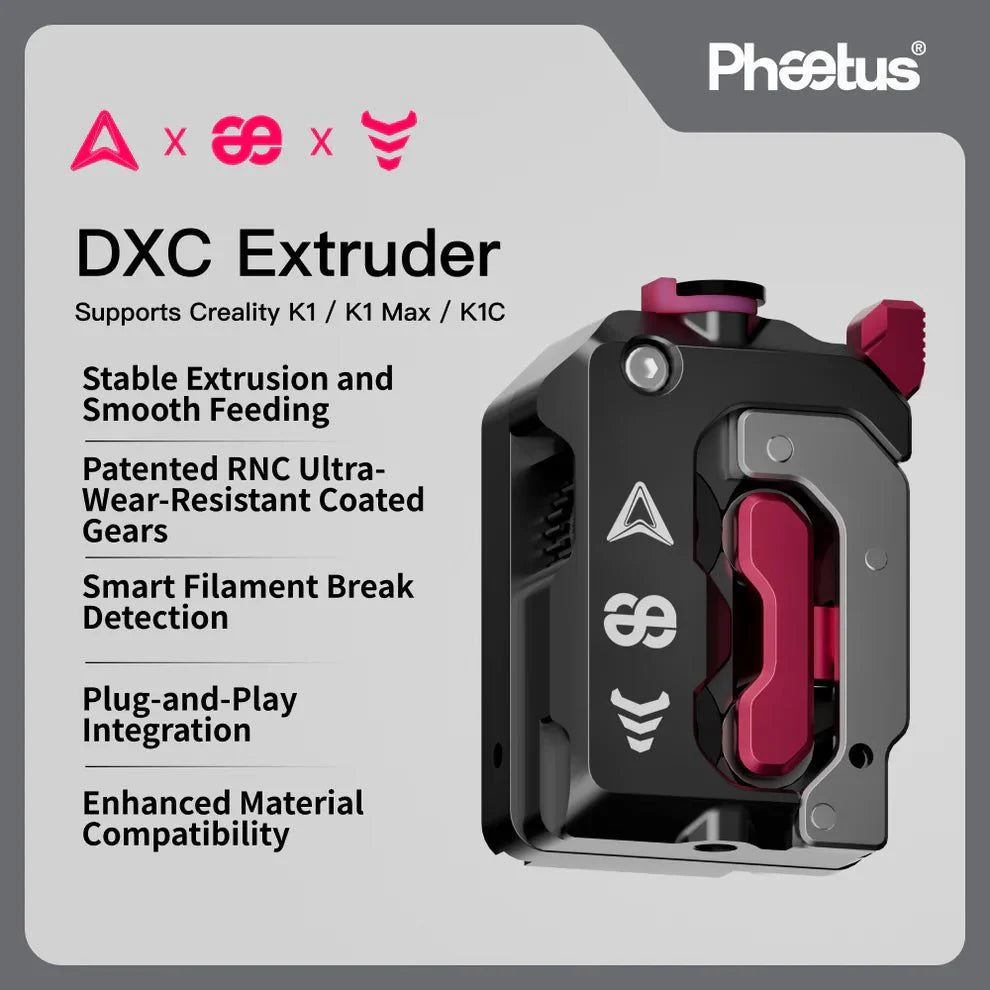

Phaetus × D3vil Design DXC Extruder for Creality K1, K1C, K1 SE and K1 Max — Helical Dual-Drive, RNC Gears, Built-in Filament Sensor, No Rooting Required

The Phaetus DXC is a direct-drive extruder upgrade designed specifically for the Creality K1, K1C, K1 SE, and K1 Max — a collaboration between Phaetus and Omranello from D3vil Design, manufactured by Runice. It replaces the K1's stock extruder with a helical dual-drive gear system, an adaptive pressure rocking arm, and RNC-coated hardened gears rated to HV3300 — solving the three most common stock K1 extruder failure modes: gear wear on abrasive filaments, inconsistent grip on flexible materials, and filament runout detection that requires reaching behind the printer.

⚠️ No firmware modification required for basic installation. However, a small firmware update is needed if you use the optional built-in filament sensor. The included sensor is normally open (blue LED indicator) — verify compatibility with your K1's board configuration.
⚠️ Motor extends further rearward than stock. On some K1 builds — especially with lid risers — the DXC's motor body may contact the rear cable chain mount. Adding a small spacer (6–8mm) to raise the rear cable chain mounting point resolves this. Consider printing a PC-CF spacer before installation.
⚠️ Filament loading lever is stiffer than stock. The tension arm requires deliberate press force to load filament — it's firmer than the OEM extruder by design. This is normal.

Helical Gears — 60% Less Filament Wear Than Straight-Cut Designs

Most extruder gears use straight-cut teeth — a single row of teeth contacts the filament at one point per revolution. Helical gears cut the teeth at an angle, so multiple teeth engage the filament simultaneously as the gear rotates. This distributes the grip force across a larger contact area, which reduces the pressure any individual tooth applies to the filament surface. The practical result is 60% less filament surface deformation and debris compared to straight-cut designs — less filament dust accumulating in the gear housing, cleaner extrusion, and better performance on filaments that are sensitive to grip pressure like TPU and soft composites.

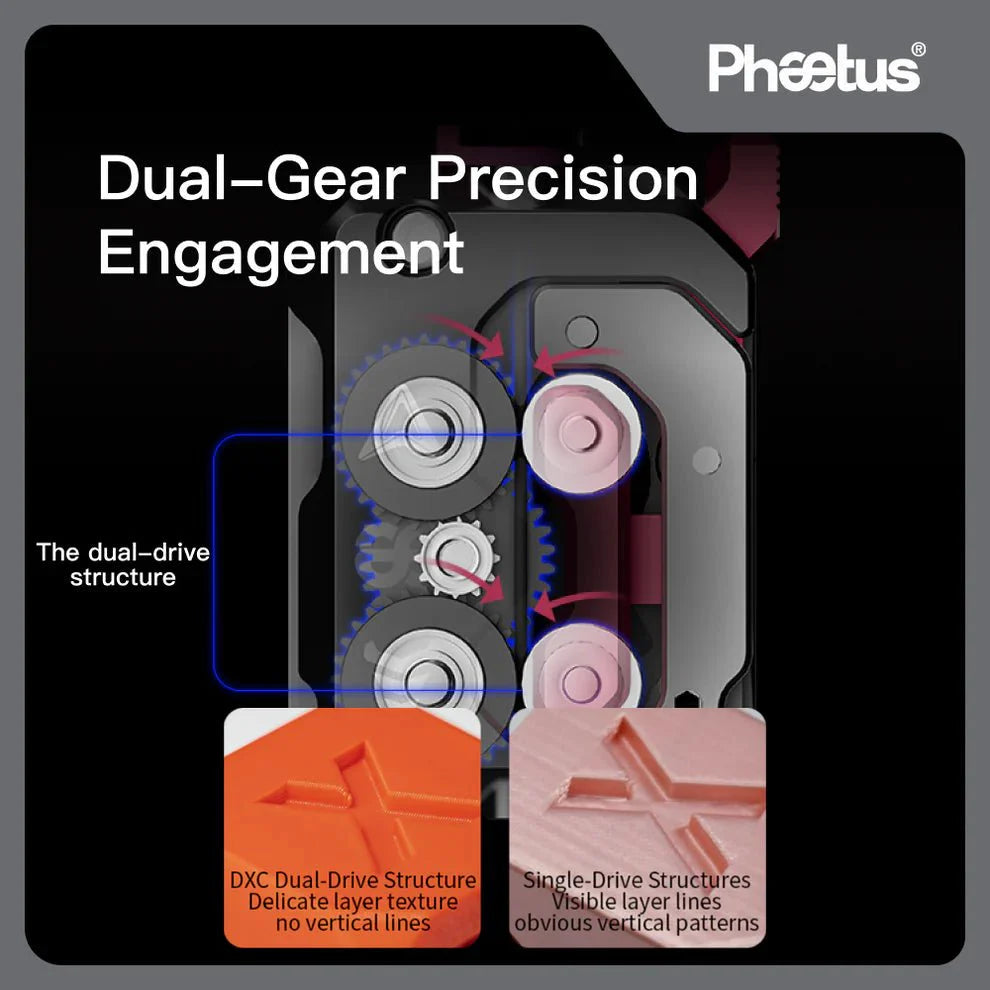

Dual-Drive Synchronization — Doubled Contact Area, Zero Slip

The DXC uses a synchronized dual-drive structure where two drive wheels grip the filament from both sides simultaneously — doubling the contact surface compared to a single-drive extruder. Combined with multiple bearings on each gear and auxiliary U-profile bearings for lateral filament guidance, the DXC eliminates the side-to-side filament wobble that causes artifacts like zits and blobs in the stock K1 extruder. Filament goes straight through, gripped evenly, every time — at speeds up to the K1's rated 600mm/s.

Adaptive Pressure Rocking Arm — Automatic Tension for Any Filament

The K1's stock extruder uses fixed tension — a single setting that works acceptably for PLA but under-grips slippery materials and over-compresses soft ones. The DXC's adaptive pressure rocking arm automatically adjusts clamping force based on filament resistance as it feeds. Hard filaments like CF composites get more grip. Soft filaments like 85A–95A TPU get less pressure, preventing the crushing that causes plugs and jams with flexible materials. No manual adjustment required when switching between material types.

RNC-Coated Gears — HV3300 Hardness, 3× Extended Service Life

The DXC's drive gears use Runice's patented RNC (Runice Nano-Coated) ultra-wear-resistant surface treatment, rated at HV3300 hardness — the same coating technology used in high-performance extruder gear sets across the industry. At HV3300, the gear surface is substantially harder than uncoated hardened steel, delivering 3× longer service life before the gear teeth show wear. For K1 users printing with abrasive materials regularly — PLA-CF, PETG-CF, PA-GF — this is the difference between replacing gears every few months or running them for the life of the printer.

Built-In Filament Sensor — Eliminates the Rear-Mount OEM Sensor

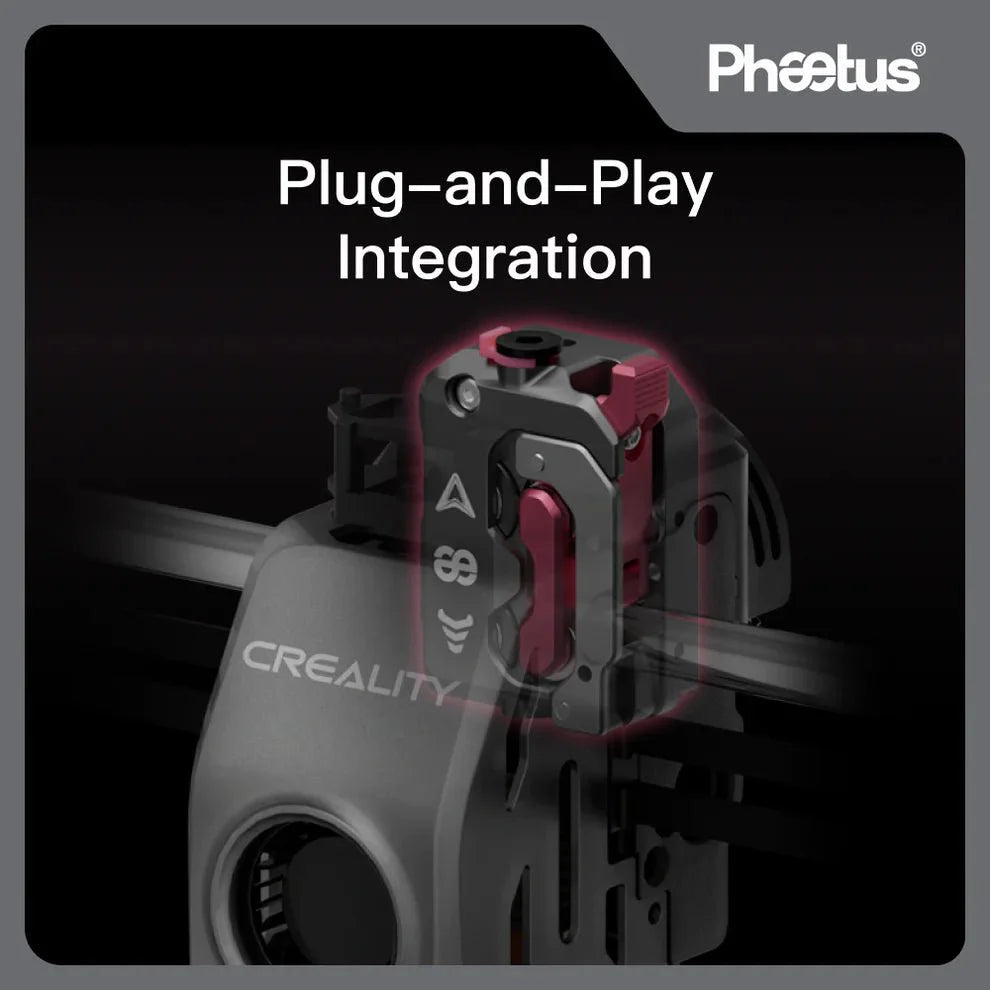

The stock K1 filament sensor mounts at the rear of the printer — away from the toolhead, requiring a long cable run and making it awkward to access for maintenance. The DXC integrates the filament sensor directly into the extruder body. A JST connector on the K1's toolhead board accepts the DXC's sensor directly — unplug the rear-mounted OEM sensor's JST connector, plug in the DXC's, and the printer detects only the new integrated sensor. No cable routing changes, no bracket printing, no reaching behind the machine for runout checks.

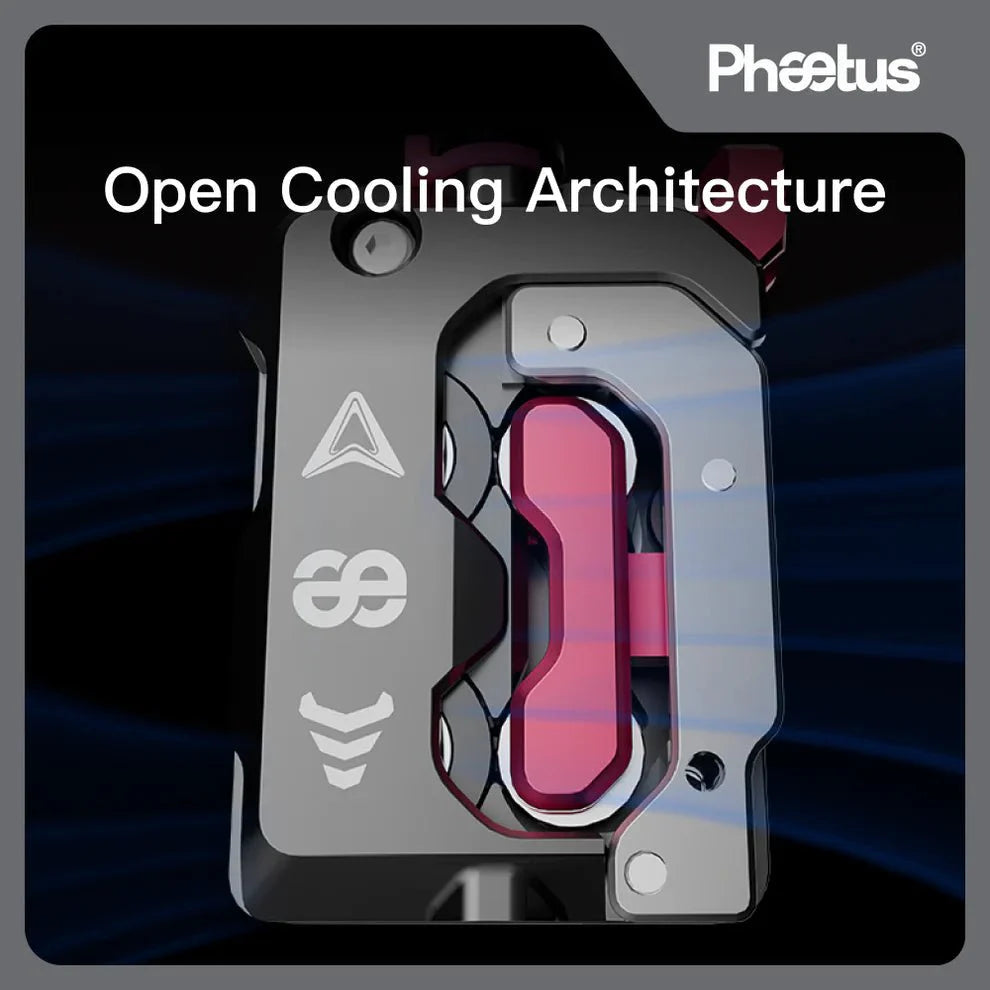

Open Cooling Architecture — Thermal Creep Prevention

Enclosed extruder housings trap heat from the stepper motor and nearby hotend — accelerating plastic component degradation and increasing thermal creep risk during long prints at elevated chamber temperatures. The DXC uses an open cooling architecture that allows airflow through the housing, keeping the gear chamber cooler and reducing thermal stress on the bearing and gear components during sustained high-temperature printing sessions.

Specifications

Why K1 Owners Upgrade the Stock Extruder

The stock K1 extruder uses plastic gears and a plastic housing. Under sustained printing — especially with abrasive filaments — the gears wear, the housing can warp from heat, and bearing play develops that shows up as zits, blobs, and inconsistent layer lines. The DXC is an all-metal replacement that eliminates all three of those failure modes with zero firmware complexity. K1 Max users printing with CF filaments in particular report significant quality improvement after the switch — smoother surfaces, no filament grinding, and reliable extrusion at the K1's highest speeds.

When Do You Need This?

Order the DXC if you're printing abrasive materials on a K1 platform and watching your stock gears degrade, if you're running TPU and dealing with inconsistent grip at the OEM tension setting, or if the rear-mounted filament sensor is a workflow irritation you want to eliminate. It's also the correct upgrade for anyone who has pushed their K1 to high speeds and started seeing extrusion consistency issues that aren't resolved by pressure advance or temperature tuning — because the bottleneck is the stock extruder's mechanical precision, not the slicer settings.
