3D Printer Cooling Fans

Sharper Overhangs, Quieter Prints

Cooling is one of the most underestimated variables in FDM print quality. Proper part cooling solidifies extruded filament immediately after deposition, allowing overhangs to hold their shape, bridges to span cleanly, and fine details to resolve sharply. At the same time, the hotend heatsink fan keeps the cold zone of your heat break cold — preventing heat creep that causes soft clogs and inconsistent extrusion. Upgrading both fans is one of the fastest, most affordable improvements available for any FDM printer.

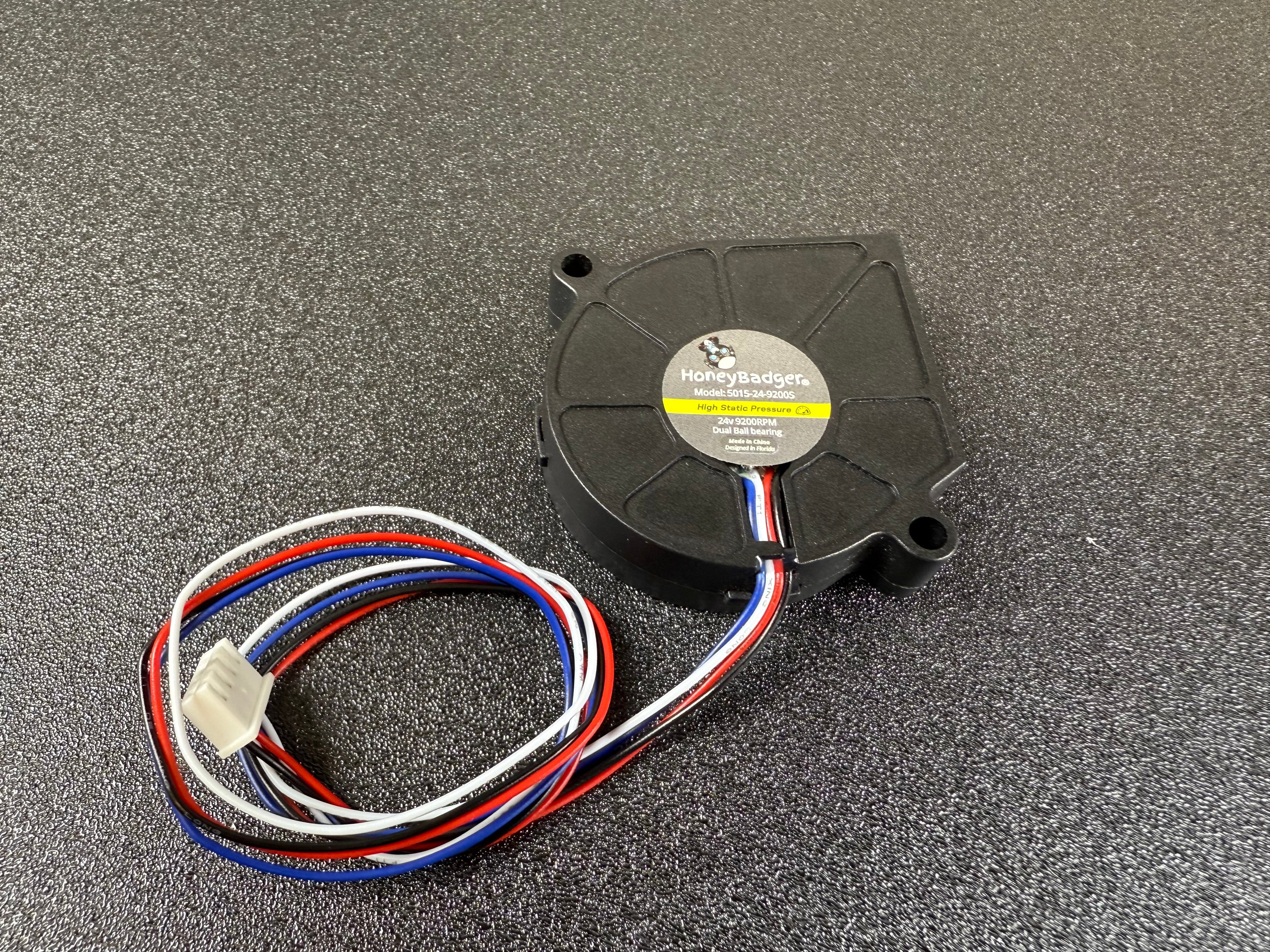

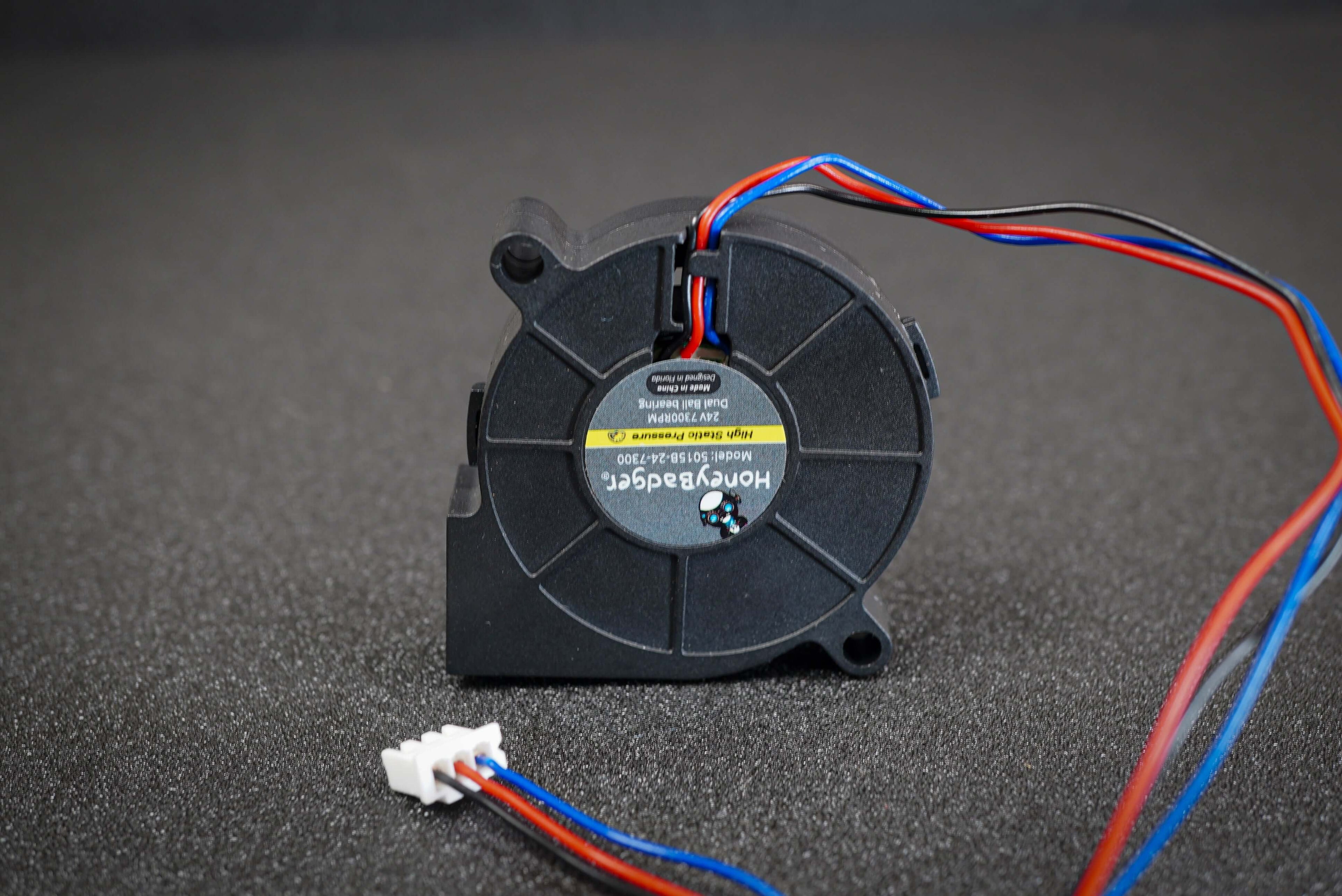

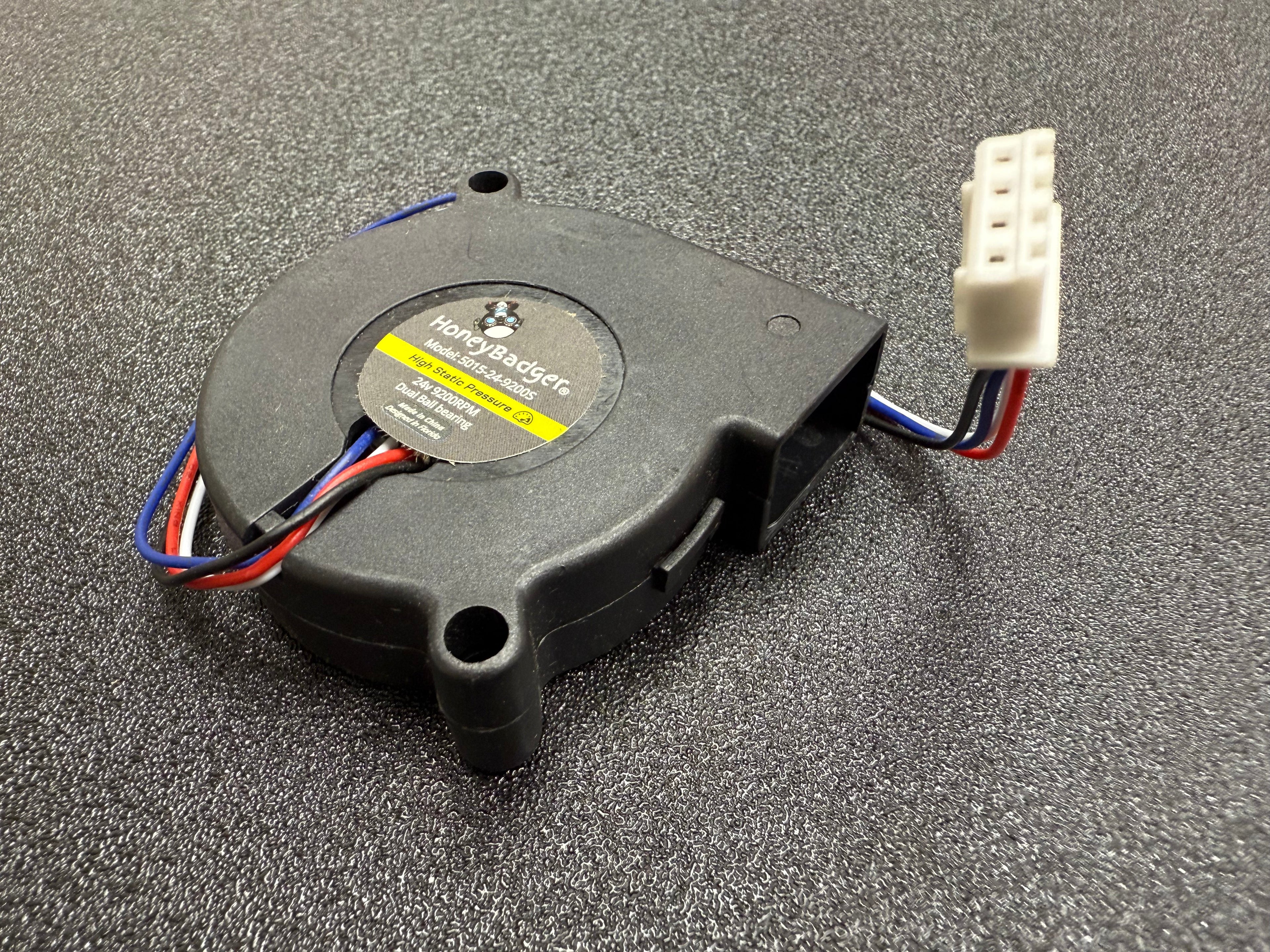

Part Cooling Fans — 5015 Blower Upgrade

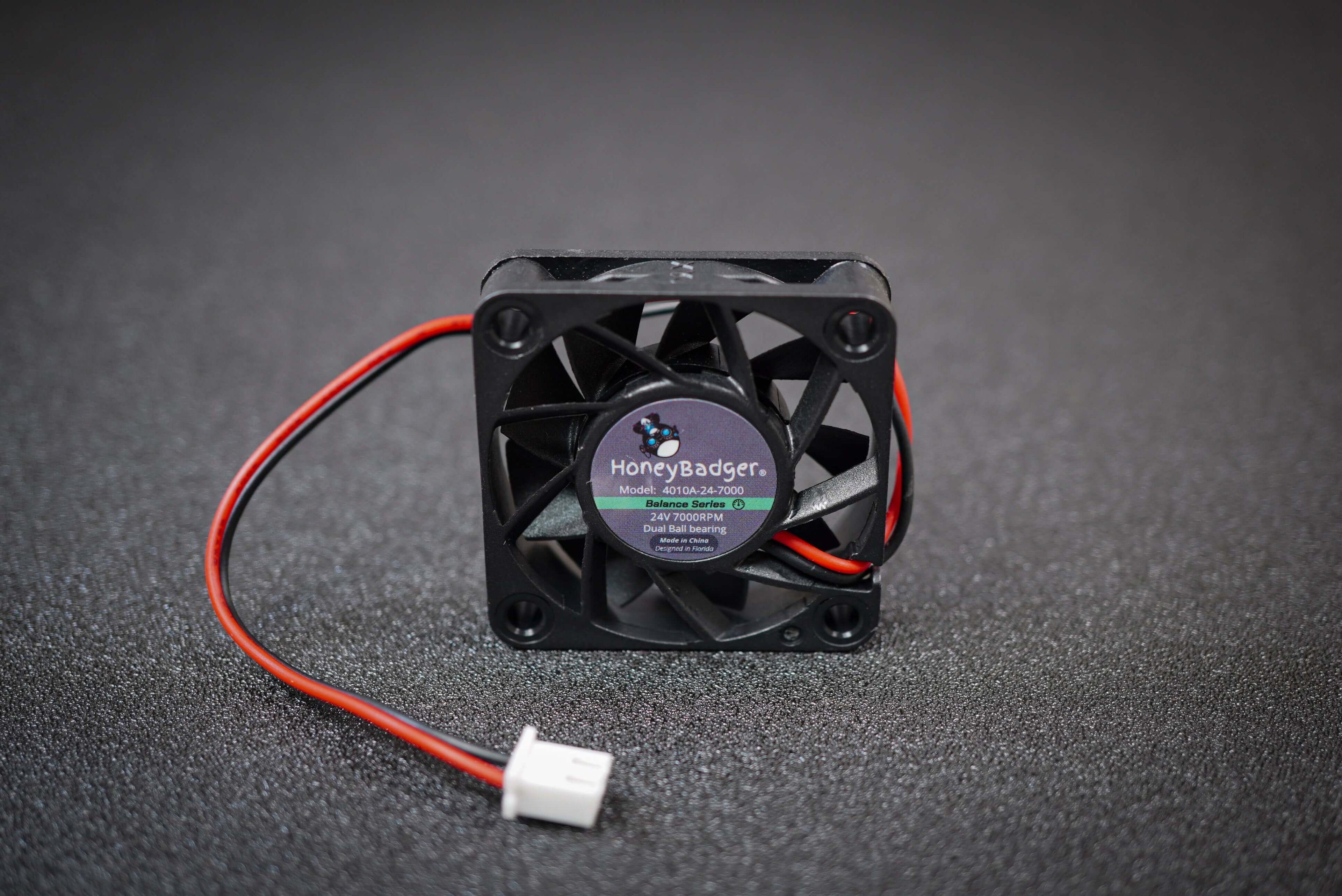

Stock part cooling fans on most budget printers are underpowered 4010 axial fans that deliver limited airflow directionally. The 5015 radial blower — a 50×50×15mm centrifugal fan — delivers significantly higher static pressure and airflow volume, channeled precisely at the melt zone through a purpose-designed cooling duct. The improvement in overhang quality and bridging performance is dramatic and immediately visible. For printers running PLA and PETG at higher speeds, a 5015 blower upgrade is consistently one of the first recommendations from experienced makers.

Hotend Heatsink Fans — Preventing Heat Creep

The heatsink fan runs continuously to keep the upper portion of the hotend — the cold zone — at ambient temperature. If this fan fails or underperforms, heat migrates up the heat break and softens filament before it reaches the melt zone. This causes soft clogs that are difficult to clear and often misdiagnosed as a nozzle or extruder problem. A quality replacement heatsink fan running at full rated speed eliminates heat creep entirely. Always keep a spare — a failed heatsink fan can destroy a hotend quickly if not caught immediately.

Fan Voltage — 12V vs. 24V

Always match the fan voltage to your printer's power supply and mainboard fan outputs. Most modern printers run 24V systems — running a 12V fan on a 24V output burns the fan out immediately. When in doubt, check your mainboard documentation or measure the fan header voltage before connecting a new fan.

Noise Reduction

Stock printer fans are often the loudest component on the machine. Quality replacement fans from reputable manufacturers run significantly quieter at the same airflow — a noticeable improvement in home and office environments. Paired with a TMC driver mainboard upgrade, a fan replacement brings printer noise to a level that is genuinely unobtrusive in most settings.

Related Parts

Cooling fans are part of your hotend assembly — if you are upgrading the fan, inspect the heatsink and heat break at the same time. For the electronics that control fan speed and behavior, see 3D printer electronics & mainboards. Back to the full 3D Printer Parts & Accessories guide.
